0936263508

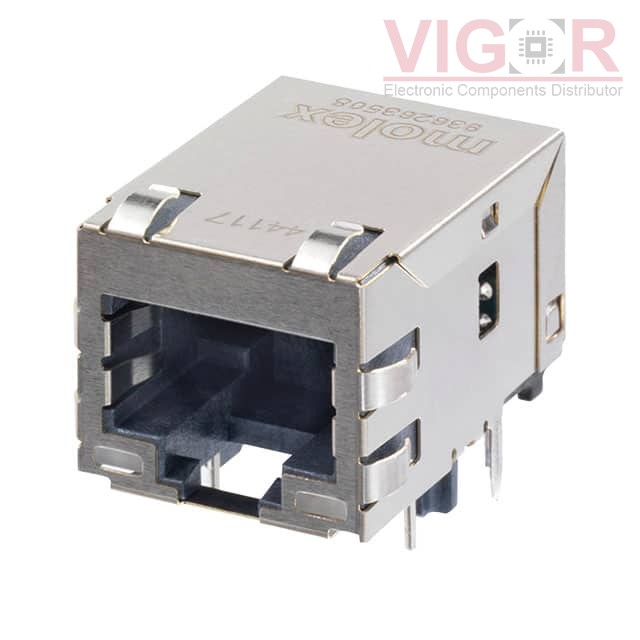

Image is for reference,
please contact us to get the real picture

Part No :: 0936263508

Manufacturer: Woodhead - Molex

Description: CONN JACK 1PORT 1000 BASE-T PCB

Catalog: Modular Connectors - Jacks With Magnetics

DataSheet: 0936263508 PDF

Availability: 0 pieces

Unit Price: ~~$4.59000~~

Current price of 0936263508 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0936263508 Specifications

Type	Description
Series:	MXMag 93626
Package:	Tray
Part Status:	Active
Connector Type:	RJ45
Number of Ports:	1
Number of Rows:	1
Applications:	10/100/1000 Base-T, AutoMDIX
Mounting Type:	Through Hole
Orientation:	90° Angle (Right)
Termination:	Solder
Height Above Board:	0.555" (14.10mm)
LED Color:	Green, Yellow - Green, Yellow
Number of Cores per Jack:	8
Shielding:	Shielded, EMI Finger
Features:	Board Guide
Tab Direction:	Down
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Operating Temperature:	0°C ~ 70°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Nov 14 - Nov 18 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$4.59000	$4.59
10	$4.42707	$44.2707
25	$4.08650	$102.1625
56	$3.91602	$219.29712
112	$3.74587	$419.53744
280	$3.32019	$929.6532
504	$3.23507	$1630.47528
1008	$2.80940	$2831.8752
2520	$2.63914	$6650.6328
