2301996-7

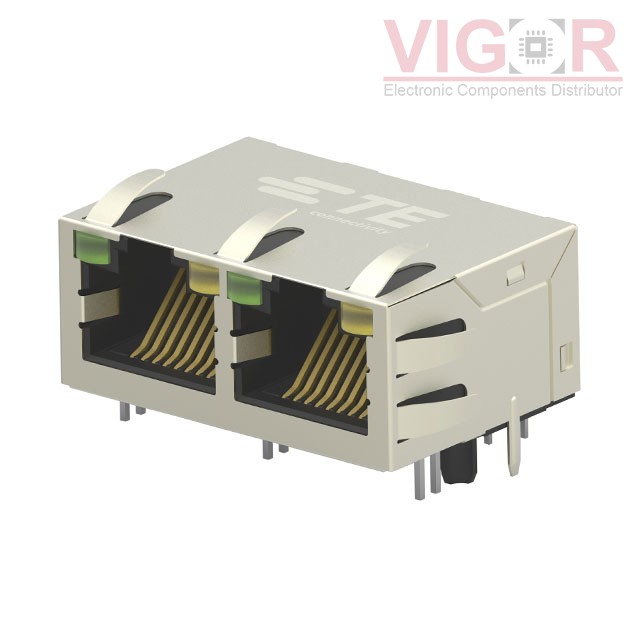

Image is for reference,
please contact us to get the real picture

Part No :: 2301996-7

Manufacturer: TE Connectivity AMP Connectors

Description: CONN JACK 2PORT 1000 BASE-T PCB

Catalog: Modular Connectors - Jacks With Magnetics

DataSheet: 2301996-7 PDF

Availability: 9559 pieces

Unit Price: ~~$16.65000~~

Current price of 2301996-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2301996-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	RJ45
Number of Ports:	2
Number of Rows:	1
Applications:	10/100/1000 Base-T, AutoMDIX
Mounting Type:	Through Hole
Orientation:	90° Angle (Right)
Termination:	Solder
Height Above Board:	0.531" (13.49mm)
LED Color:	Green, Yellow - Green, Yellow
Number of Cores per Jack:	8
Shielding:	Shielded, EMI Finger
Features:	Board Lock
Tab Direction:	Up
Contact Material:	Copper Alloy
Contact Finish:	Gold
Operating Temperature:	-40°C ~ 85°C
