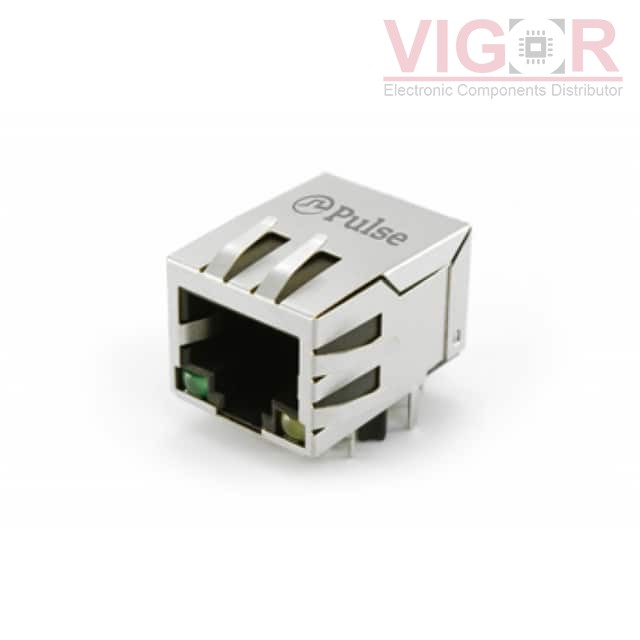

JXD0-9006NL

Part No :: JXD0-9006NL

Manufacturer: PulseLarsen Antenna

VIGOR # :: 3222178

Description: CONN JACK 1PORT 100 BASE-T PCB

Catalog: Modular Connectors - Jacks With Magnetics

DataSheet: JXD0-9006NL PDF

Country of origin: -

Date code: -

JXD0-9006NL Specifications

Type	Description
Series:	PULSEJACK™ JXD0
Package:	Tray
Part Status:	Last Time Buy
Connector Type:	RJ45
Number of Ports:	1
Number of Rows:	1
Applications:	10/100 Base-T, AutoMDIX
Mounting Type:	Through Hole
Orientation:	90° Angle (Right)
Termination:	Solder Paste
Height Above Board:	0.570" (14.50mm)
LED Color:	Green - Yellow
Number of Cores per Jack:	4
Shielding:	Shielded, EMI Finger
Features:	Board Guide
Tab Direction:	Down
Contact Material:	Copper Alloy
Contact Finish:	Gold
Operating Temperature:	-40°C ~ 85°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 507

Shipped from

HK warehouse

Expected Shipping Date

Jan 02 - Jan 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.00~~	~~$5.00~~

Current price of JXD0-9006NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

JXD1-0015NL

CONN JACK 1PORT PCB RJ45

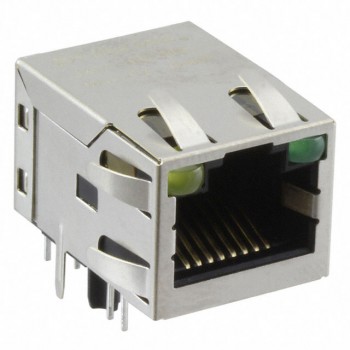

JXD1-0026NL

CONN JACK 1PORT 1000 BASE-T PCB

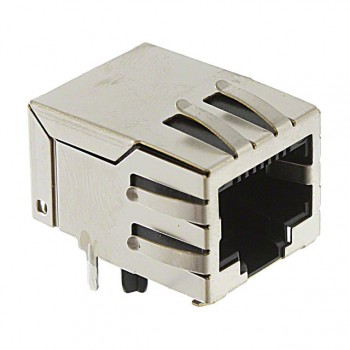

JXR0-0001NLT
