0863-2X6R-54-F

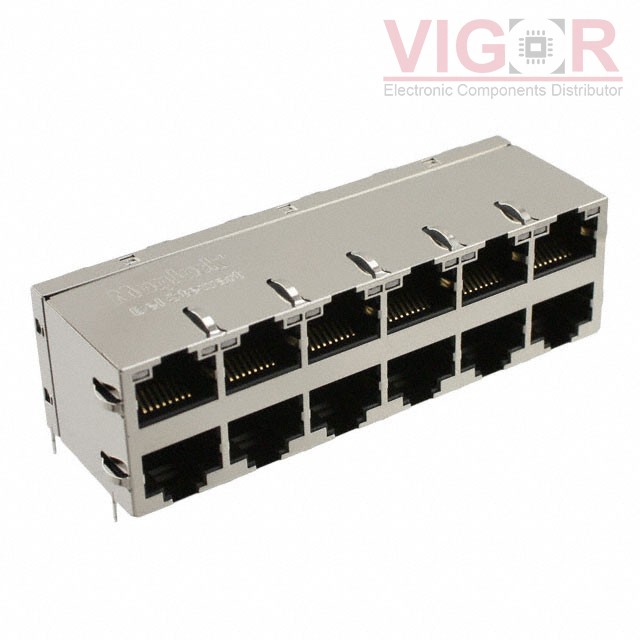

Image is for reference,
please contact us to get the real picture

Part No :: 0863-2X6R-54-F

Manufacturer: Bel Fuse, Inc.

Description: CONN JACK 12PORT 1000 BASE-T PCB

Catalog: Modular Connectors - Jacks With Magnetics

DataSheet: 0863-2X6R-54-F PDF

Availability: 30 pieces

Unit Price: ~~$45.38000~~

Current price of 0863-2X6R-54-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0863-2X6R-54-F Specifications

Type	Description
Series:	MagJack®
Package:	Tray
Part Status:	Active
Connector Type:	RJ45
Number of Ports:	12
Number of Rows:	2
Applications:	10/100/1000 Base-T, AutoMDIX
Mounting Type:	Through Hole
Orientation:	90° Angle (Right)
Termination:	Solder
Height Above Board:	1.004" (25.50mm)
LED Color:	Green, Orange - Green, Orange
Number of Cores per Jack:	8
Shielding:	Shielded, EMI Finger
Features:	Board Guide
Tab Direction:	Up and Down
Contact Material:	Copper Alloy
Contact Finish:	Gold
Operating Temperature:	0°C ~ 70°C
