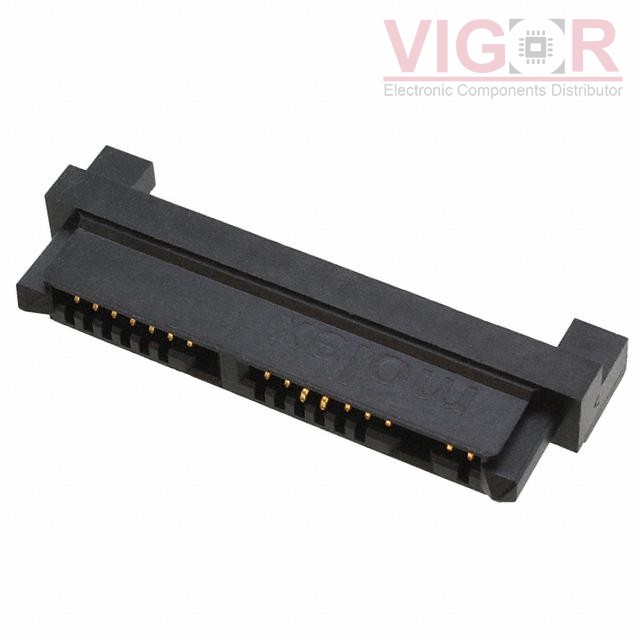

0783200001

Part No :: 0783200001

Manufacturer: Woodhead - Molex

Description: CONN MICRO SATA RCPT 16P R/A SMD

Catalog: Pluggable Connectors

DataSheet: 0783200001 PDF

Availability: 49 pieces

Current price of 0783200001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0783200001 Specifications

Type	Description
Series:	78320
Package:	Tray
Part Status:	Active
Connector Style:	Receptacle
Connector Type:	SATA, Micro
Number of Positions:	16
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Features:	Board Guide, Mating Guide
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)

Please confirm the specifications of the products when ordering.
