5003.146B.1

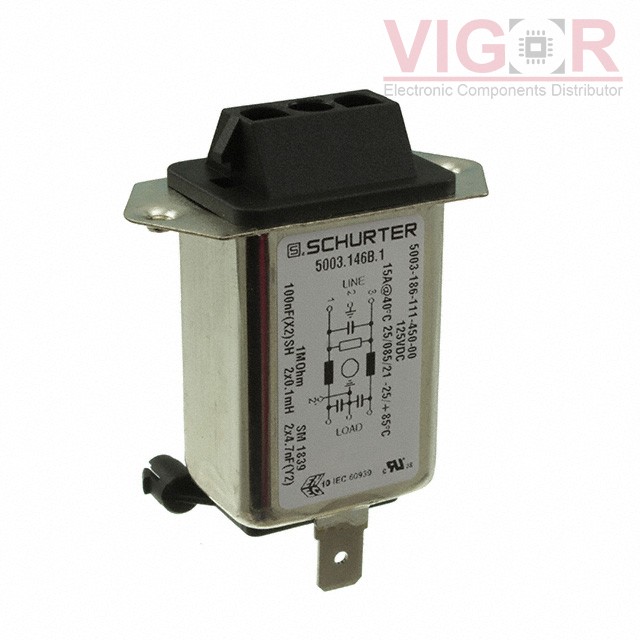

Image is for reference,
please contact us to get the real picture

Part No :: 5003.146B.1

Manufacturer: Schurter

Description: PWR ENT RCPT PANEL SOLDER

Catalog: Power Entry Connectors - Inlets, Outlets, Modules

DataSheet: 5003.146B.1 PDF

Availability: 10 pieces

Unit Price: ~~$13.83000~~

Current price of 5003.146B.1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

5003.146B.1 Specifications

Type	Description
Series:	5003
Package:	Bulk
Part Status:	Active
Connector Style:	Special - AMP MATE-N-LOK or Molex MLX
Connector Type:	Receptacle, Male Pins
Current - IEC:	15A
Voltage - IEC:	125VDC
Current - UL:	15A
Voltage - UL:	125VDC
Filter Type:	Filtered (EMI, RFI) - Commercial
Accomodates a Fuse:	No
Number of Positions:	3
Mounting Type:	Panel Mount, Snap-In; Through Hole, Right Angle
Termination:	Solder
Switch Features:	-
Features:	Shielded
Fuse Holder, Drawer:	-
Panel Cutout Dimensions:	Rectangular - 30.30mm x 22.80mm
Panel Thickness:	0.031" ~ 0.079" (0.79mm ~ 2.00mm)
Material Flammability Rating:	UL94 V-0
Ingress Protection:	-
Approval Agency:	cULus, ENEC
