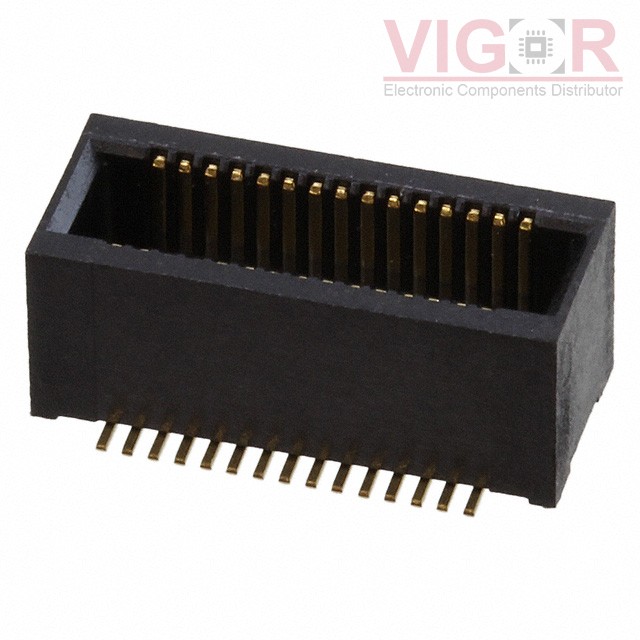

WR-30PB-VF50-N1-R1300

Part No :: WR-30PB-VF50-N1-R1300

Manufacturer: JAE Electronics

VIGOR # :: 3005131

Description: CONN PLUG 30POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: WR-30PB-VF50-N1-R1300 PDF

Current price of WR-30PB-VF50-N1-R1300 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

WR-30PB-VF50-N1-R1300 Specifications

Type	Description
Series:	WR
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Plug, Outer Shroud Contacts
Number of Positions:	30
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Board Guide
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	5mm, 5.5mm, 8mm
Height Above Board:	0.118" (3.00mm)
