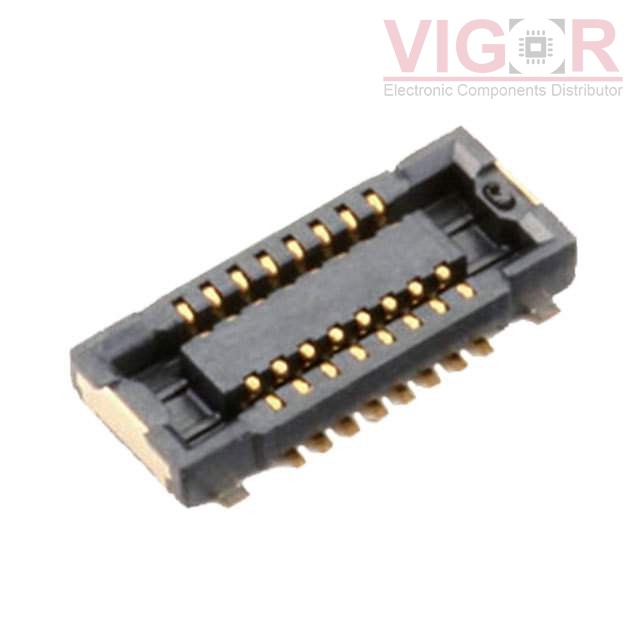

AXF5A1612

Part No :: AXF5A1612

Manufacturer: Panasonic

VIGOR # :: 3008794

Description: CONN SOCKET 16POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXF5A1612 PDF

Current price of AXF5A1612 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXF5A1612 Specifications

Type	Description
Series:	A35P
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Socket, Center Strip Contacts
Number of Positions:	16
Pitch:	0.014" (0.35mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	0.8mm
Height Above Board:	0.030" (0.75mm)

Please confirm the specifications of the products when ordering.
