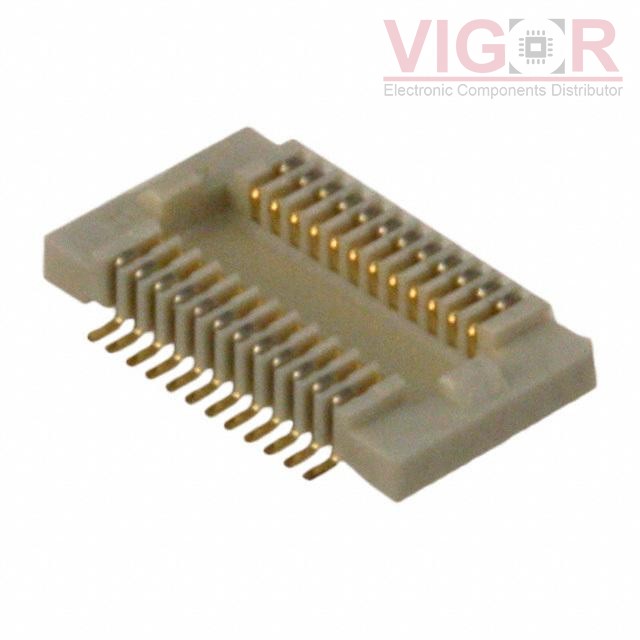

AXK5F22347YG

Part No :: AXK5F22347YG

Manufacturer: Panasonic

VIGOR # :: 3009299

Description: CONN SOCKET 22POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXK5F22347YG PDF

Current price of AXK5F22347YG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXK5F22347YG Specifications

Type	Description
Series:	P5KF
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Connector Type:	Socket, Outer Shroud Contacts
Number of Positions:	22
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	1.5mm
Height Above Board:	0.053" (1.35mm)

Please confirm the specifications of the products when ordering.
