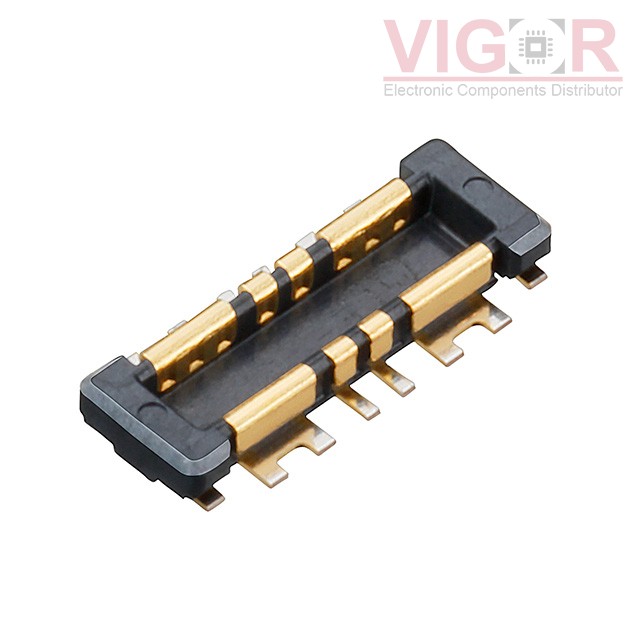

AXF482700

Part No :: AXF482700

Manufacturer: Panasonic

VIGOR # :: 3011077

Description: CONN HDR 8POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXF482700 PDF

Current price of AXF482700 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXF482700 Specifications

Type	Description
Series:	B02
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	8
Pitch:	-
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	0.7mm
Height Above Board:	0.022" (0.57mm)

Please confirm the specifications of the products when ordering.
