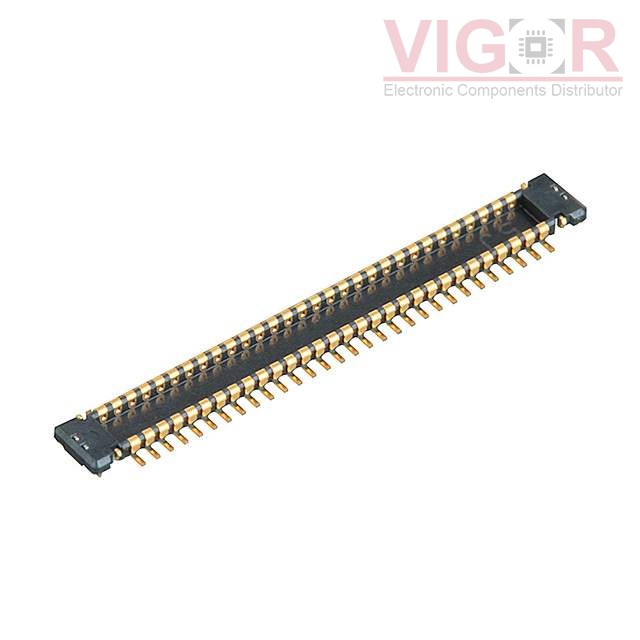

AXF5D2012A

Part No :: AXF5D2012A

Manufacturer: Panasonic

VIGOR # :: 3012568

Description: CONN RCPT 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

DataSheet: AXF5D2012A PDF

Current price of AXF5D2012A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AXF5D2012A Specifications

Type	Description
Series:	A35UH
Package:	Strip
Part Status:	Active
Connector Type:	Receptacle, Center Strip Contacts
Number of Positions:	20
Pitch:	0.014" (0.35mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	0.6mm
Height Above Board:	0.023" (0.59mm)
