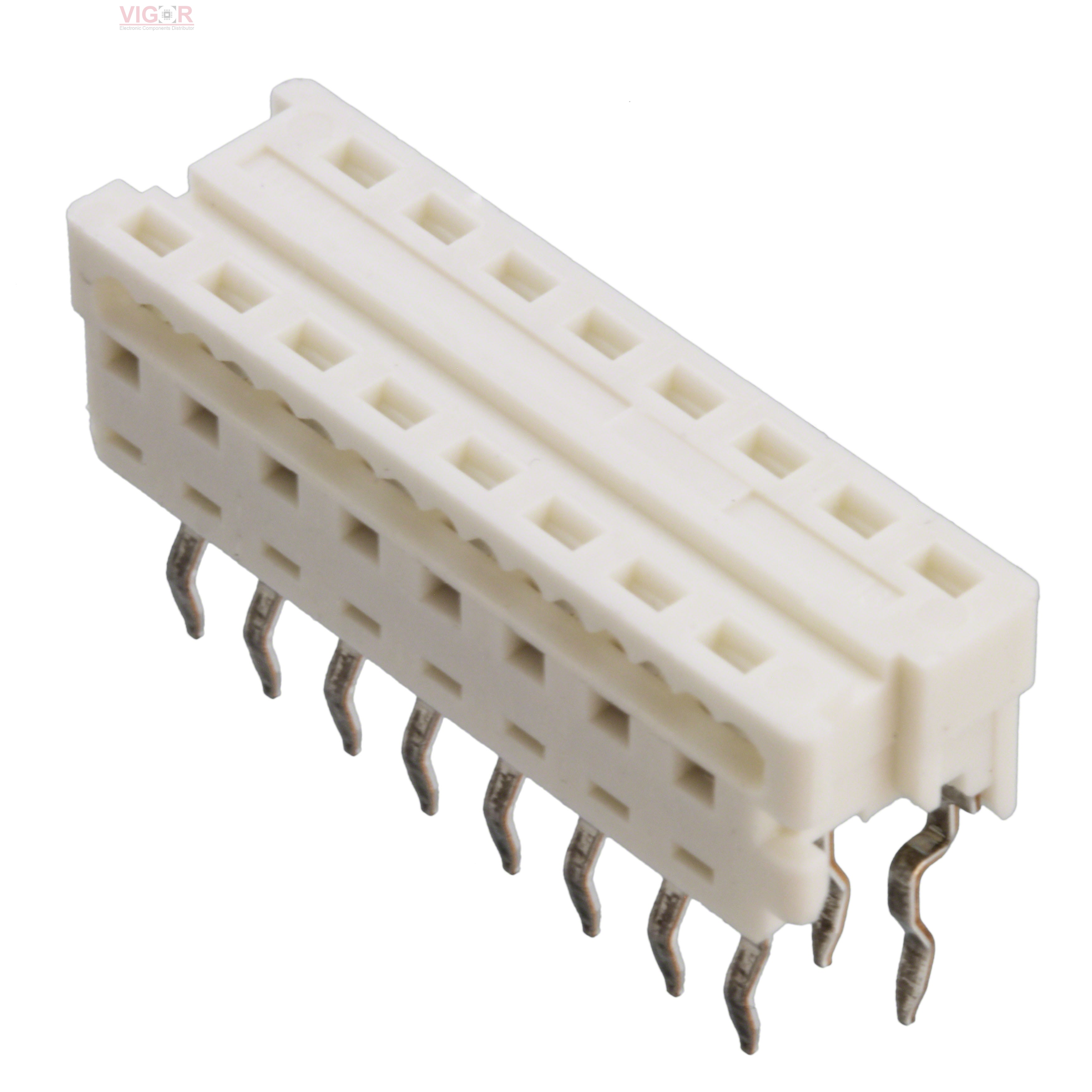

Image is for reference,
please contact us to get the real picture

Part No :

0905842316

Manufacturer
Woodhead - Molex
Description
CONN DIP HDR IDC 16POS PCB
Catalog
Rectangular Connectors - Board In, Direct Wire to Board
Shipped from
HK warehouse
Expected Shipping Date
Sep 28 - Oct 02 2025
DataSheet
0905842316 PDF
Availability
0 pieces
Unit Price
$1.00950

Current price of 0905842316 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0905842316 Specifications
Type Description
Series:Picoflex 90584
Package:Tube
Part Status:Active
Connector Type:Ribbon Cable, DIP Header
Number of Positions:16
Cable Pitch:0.050" (1.27mm)
Board-Side Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Mounting Type:Through Hole, Press-Fit
Cable Termination:IDC
Wire Gauge:26-28 AWG, Stranded
Features:Closed End
Contact Finish:Tin
Contact Finish Thickness:80.0µin (2.03µm)
Color:White
