09DB-8M

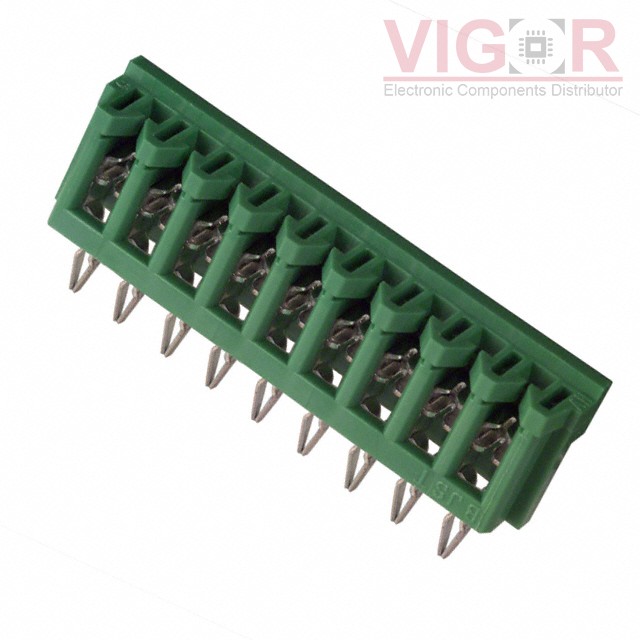

Image is for reference,
please contact us to get the real picture

Part No :: 09DB-8M

Manufacturer: JST

Description: CONN WIRE IDC 9POS 24-28AWG PCB

Catalog: Rectangular Connectors - Board In, Direct Wire to Board

DataSheet: 09DB-8M PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 09DB-8M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

09DB-8M Specifications

Type	Description
Series:	DB
Package:	Bulk
Part Status:	Active
Connector Type:	Individual Wires
Number of Positions:	9
Cable Pitch:	0.098" (2.50mm)
Board-Side Pitch:	0.098" (2.50mm)
Number of Rows:	1
Row Spacing:	-
Mounting Type:	Through Hole, Press-Fit
Cable Termination:	IDC
Wire Gauge:	24-28 AWG, Stranded
Features:	Closed End
Contact Finish:	Tin-Lead
Contact Finish Thickness:	-
Color:	Green

Please confirm the specifications of the products when ordering.
