FW-08-03-L-D-258-100-A

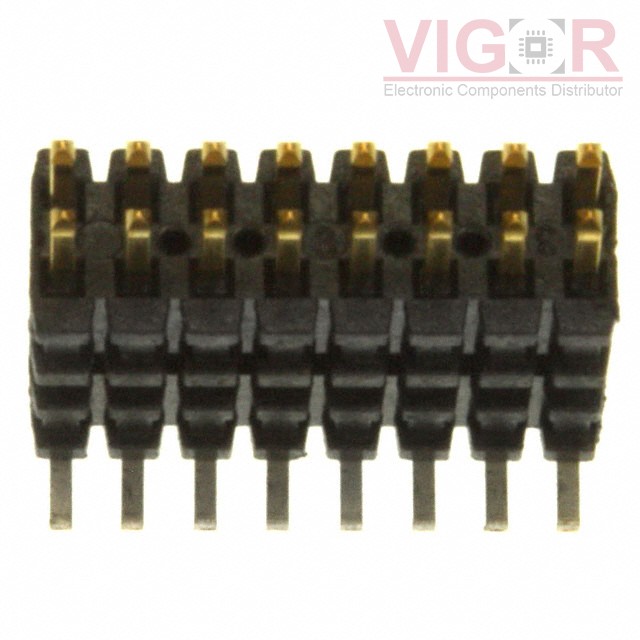

Image is for reference,
please contact us to get the real picture

Part No :: FW-08-03-L-D-258-100-A

Manufacturer: Samtec, Inc.

Description: CONN HDR 16POS 0.05 STACK SMD

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: FW-08-03-L-D-258-100-A PDF

Availability: 0 pieces

Unit Price: ~~$3.56000~~

Current price of FW-08-03-L-D-258-100-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FW-08-03-L-D-258-100-A Specifications

Type	Description
Series:	Flex Stack, FW
Package:	Tube
Part Status:	Active
Number of Positions:	16
Pitch:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing:	0.050" (1.27mm)
Length - Overall Pin:	0.358" (9.093mm)
Length - Post (Mating):	0.100" (2.540mm)
Length - Stack Height:	0.258" (6.553mm)
Length - Tail:	-
Mounting Type:	Surface Mount
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	10.0µin (0.25µm)
Color:	Black
