ZW-16-15-F-S-225-175

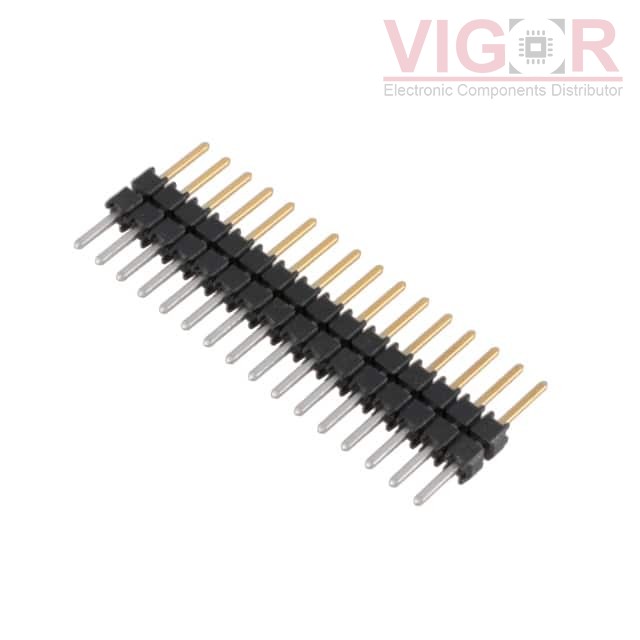

Image is for reference,
please contact us to get the real picture

Part No :: ZW-16-15-F-S-225-175

Manufacturer: Samtec, Inc.

Description: CONN HDR 16POS 0.1 STACK T/H

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: ZW-16-15-F-S-225-175 PDF

Availability: 180 pieces

Unit Price: ~~$1.66000~~

Current price of ZW-16-15-F-S-225-175 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ZW-16-15-F-S-225-175 Specifications

Type	Description
Series:	Flex Stack, ZW
Package:	Bulk
Part Status:	Active
Number of Positions:	16
Pitch:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing:	-
Length - Overall Pin:	0.630" (16.002mm)
Length - Post (Mating):	0.230" (5.842mm)
Length - Stack Height:	0.225" (5.715mm)
Length - Tail:	0.175" (4.445mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	Flash
Color:	Black
