9-146500-0

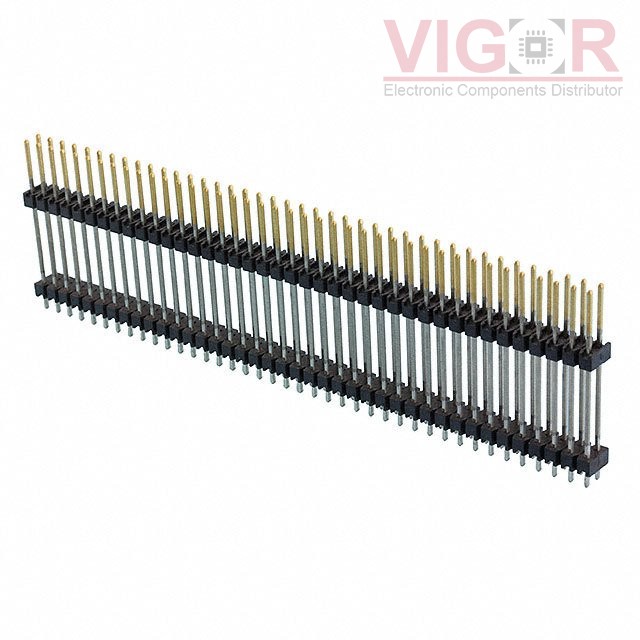

Image is for reference,
please contact us to get the real picture

Part No :: 9-146500-0

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HDR 80POS 0.1 STACK T/H

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: 9-146500-0 PDF

Availability: 0 pieces

Unit Price: ~~$20.37000~~

Current price of 9-146500-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

9-146500-0 Specifications

Type	Description
Series:	AMPMODU Mod II
Package:	Bulk
Part Status:	Active
Number of Positions:	80
Pitch:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing:	0.100" (2.54mm)
Length - Overall Pin:	1.130" (28.700mm)
Length - Post (Mating):	0.330" (8.382mm)
Length - Stack Height:	0.700" (17.780mm)
Length - Tail:	0.100" (2.540mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	15.0µin (0.38µm)
Color:	Black
