DW-16-10-L-D-500

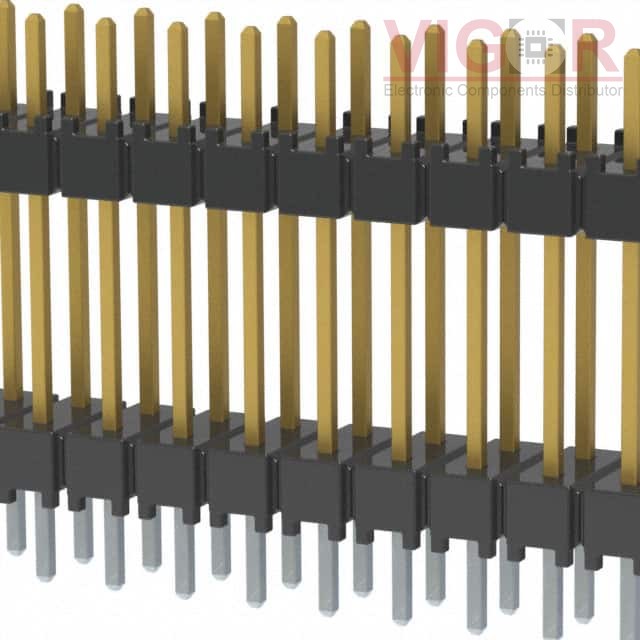

Image is for reference,
please contact us to get the real picture

Part No :: DW-16-10-L-D-500

Manufacturer: Samtec, Inc.

Description: CONN HDR 32POS 0.1 STACK T/H

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: DW-16-10-L-D-500 PDF

Availability: 628 pieces

Unit Price: ~~$3.99000~~

Current price of DW-16-10-L-D-500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DW-16-10-L-D-500 Specifications

Type	Description
Series:	Flex Stack, DW
Package:	Bulk
Part Status:	Active
Number of Positions:	32
Pitch:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing:	0.100" (2.54mm)
Length - Overall Pin:	0.830" (21.082mm)
Length - Post (Mating):	0.220" (5.588mm)
Length - Stack Height:	0.500" (12.700mm)
Length - Tail:	0.110" (2.794mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	10.0µin (0.25µm)
Color:	Black
