TW-40-03-G-D-220-135

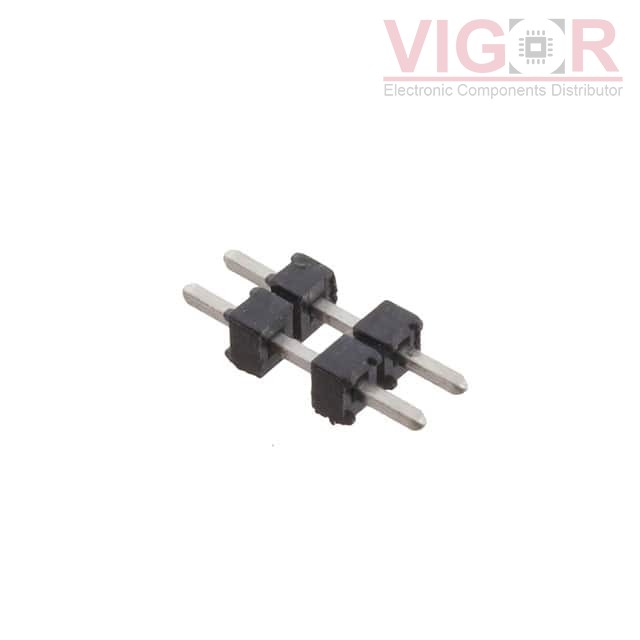

Image is for reference,
please contact us to get the real picture

Part No :: TW-40-03-G-D-220-135

Manufacturer: Samtec, Inc.

Description: CONN BRD STACK 2.00 80POS

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: TW-40-03-G-D-220-135 PDF

Availability: 111 pieces

Unit Price: ~~$13.58000~~

Current price of TW-40-03-G-D-220-135 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TW-40-03-G-D-220-135 Specifications

Type	Description
Series:	TW
Package:	Bulk
Part Status:	Active
Number of Positions:	80
Pitch:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing:	0.079" (2.00mm)
Length - Overall Pin:	0.535" (13.589mm)
Length - Post (Mating):	0.180" (4.572mm)
Length - Stack Height:	0.220" (5.588mm)
Length - Tail:	0.135" (3.429mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	20.0µin (0.51µm)
Color:	Black
