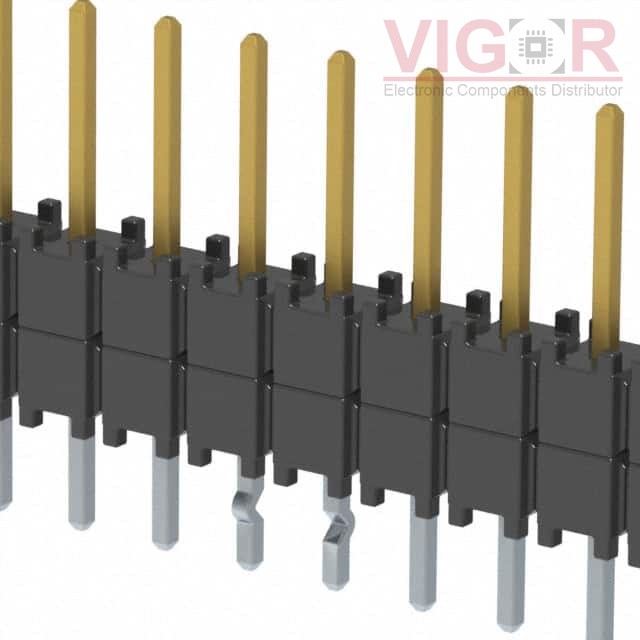

DW-24-08-F-S-200-LL

Image is for reference,
please contact us to get the real picture

Part No :: DW-24-08-F-S-200-LL

Manufacturer: Samtec, Inc.

Description: CONN HDR 24POS 0.1 STACK T/H

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: DW-24-08-F-S-200-LL PDF

Availability: 0 pieces

Unit Price: ~~$2.45000~~

Current price of DW-24-08-F-S-200-LL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DW-24-08-F-S-200-LL Specifications

Type	Description
Series:	Flex Stack, DW
Package:	Bulk
Part Status:	Active
Number of Positions:	24
Pitch:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing:	-
Length - Overall Pin:	0.530" (13.462mm)
Length - Post (Mating):	0.220" (5.588mm)
Length - Stack Height:	0.200" (5.080mm)
Length - Tail:	0.110" (2.794mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	3.00µin (0.076µm)
Color:	Black
