PC156BSM-02-S-04-T-309-S-LF

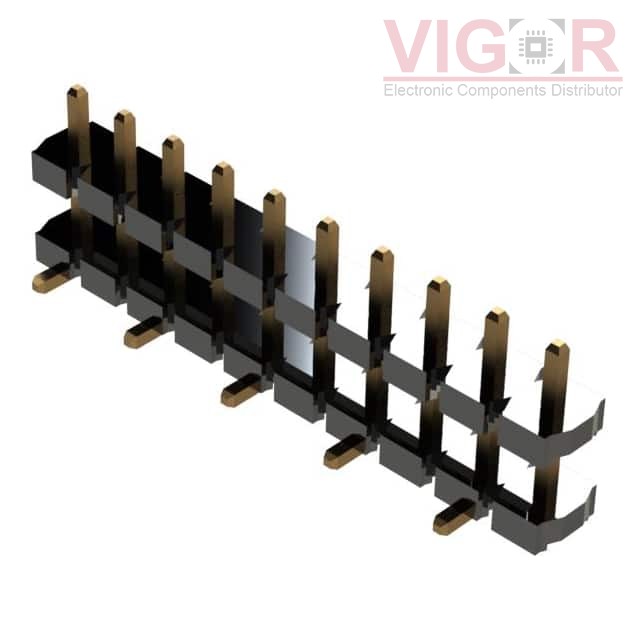

Image is for reference,
please contact us to get the real picture

Part No :: PC156BSM-02-S-04-T-309-S-LF

Manufacturer: Major League Electronics

Description: CONN BRD STACK TERMINAL STRIP

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: PC156BSM-02-S-04-T-309-S-LF PDF

Availability: 199 pieces

Unit Price: ~~$0.25201~~

Current price of PC156BSM-02-S-04-T-309-S-LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PC156BSM-02-S-04-T-309-S-LF Specifications

Type	Description
Series:	PC156BSM
Package:	Bulk
Part Status:	Active
Number of Positions:	2
Pitch:	0.156" (3.96mm)
Number of Rows:	1
Row Spacing:	-
Length - Overall Pin:	0.520" (13.208mm)
Length - Post (Mating):	0.211" (5.359mm)
Length - Stack Height:	0.309" (7.849mm)
Length - Tail:	-
Mounting Type:	Surface Mount
Termination:	Solder
Contact Finish - Post (Mating):	Tin
Contact Finish Thickness - Post (Mating):	-
Color:	Black
