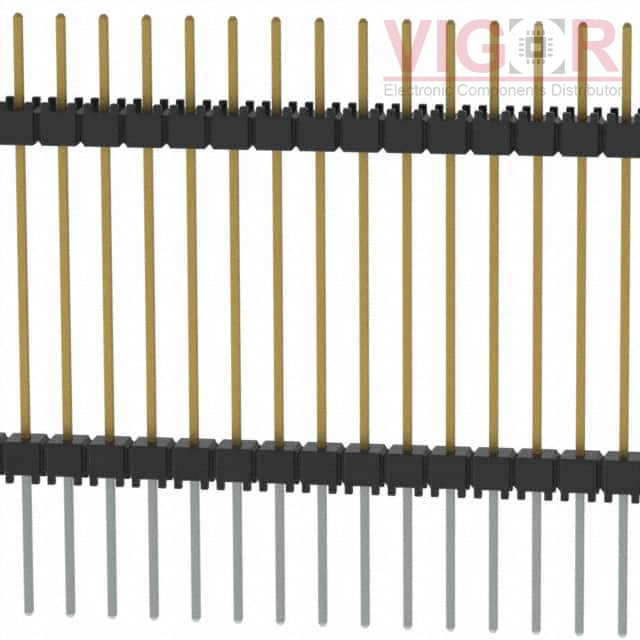

EW-22-14-L-S-900

Part No :: EW-22-14-L-S-900

Manufacturer: Samtec, Inc.

VIGOR # :: 4710904

Description: CONN HDR 22POS 0.1 STACK T/H

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

DataSheet: EW-22-14-L-S-900 PDF

Country of origin: -

Date code: -

EW-22-14-L-S-900 Specifications

Type	Description
Series:	Flex Stack, EW
Package:	Bulk
Part Status:	Active
Number of Positions:	22
Pitch:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing:	-
Length - Overall Pin:	1.430" (36.322mm)
Length - Post (Mating):	0.200" (5.080mm)
Length - Stack Height:	0.900" (22.860mm)
Length - Tail:	0.330" (8.382mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	10.0µin (0.25µm)
Color:	Black

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Dec 29 - Jan 02 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of EW-22-14-L-S-900 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

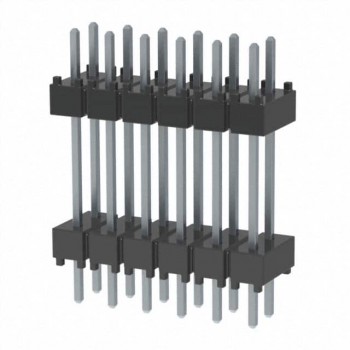

DW-06-10-T-D-500

CONN HDR 12POS 0.1 STACK T/H TIN

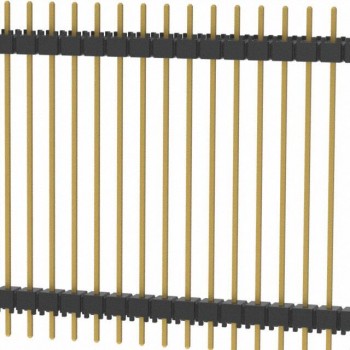

DW-50-14-G-S-1200

CONN HDR 50POS 0.1 STACK T/H

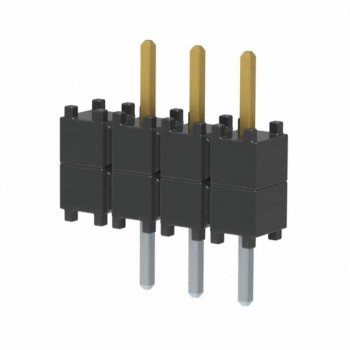

DW-04-07-F-S-200-001

CONN HDR 4POS 0.1 STACK T/H GOLD

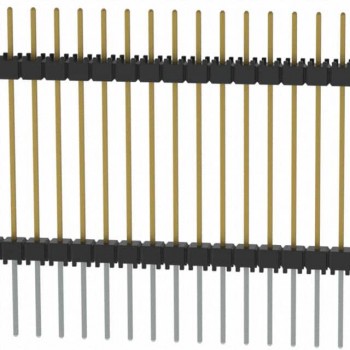

EW-22-14-L-S-900
