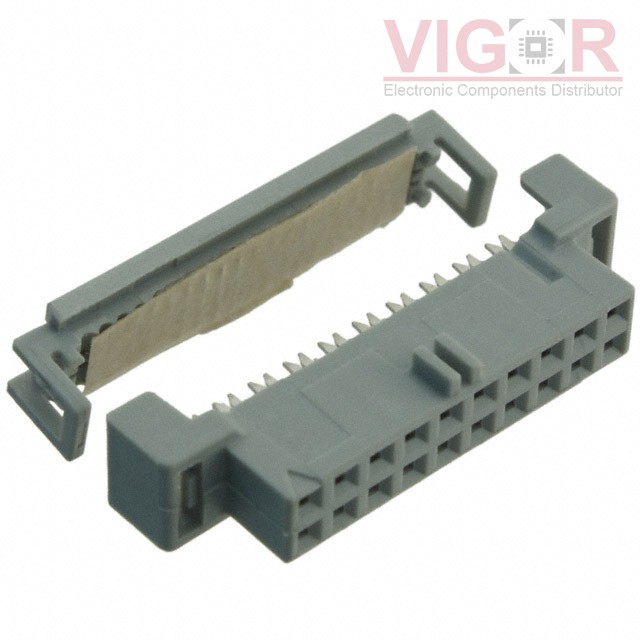

158120-1100

Part No :: 158120-1100

Manufacturer: 3M

Description: CONN SOCKET 20POS IDC 28AWG GOLD

Catalog: Rectangular Connectors - Free Hanging, Panel Mount

DataSheet: 158120-1100 PDF

Availability: 470 pieces

Unit Price: ~~$5.23000~~

Current price of 158120-1100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

158120-1100 Specifications

Type	Description
Series:	158
Package:	Tray
Part Status:	Obsolete
Connector Type:	Socket
Contact Type:	Female Socket
Number of Positions:	20
Pitch:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing:	0.079" (2.00mm)
Mounting Type:	Free Hanging (In-Line)
Fastening Type:	-
Cable Termination:	IDC
Wire Type:	Ribbon Cable
Wire Gauge:	28 AWG
Features:	Feed Through
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Color:	Gray

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 470

Shipped from

HK warehouse

Expected Shipping Date

Nov 23 - Nov 27 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$5.23000	$5.23
10	$5.02128	$50.2128
25	$4.60240	$115.06
50	$4.39320	$219.66
100	$4.18400	$418.4
384	$3.66101	$1405.82784
768	$3.24260	$2490.3168
1152	$3.03340	$3494.4768
2688	$2.82420	$7591.4496
