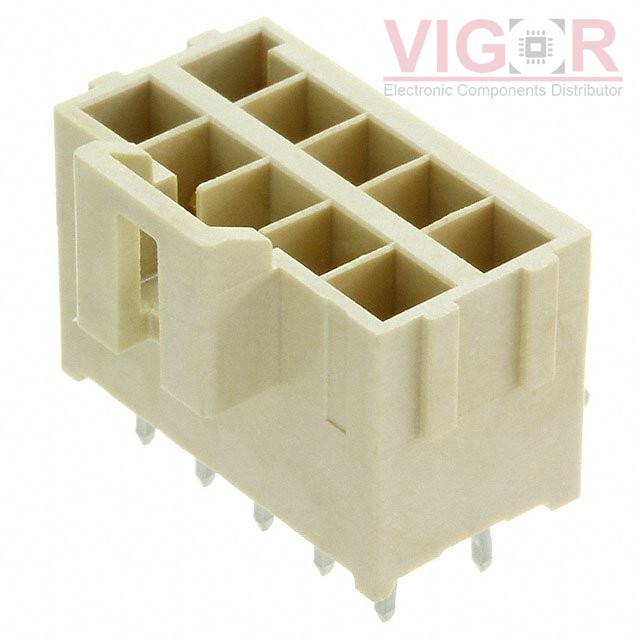

Product image
Product thumb
Part No :

1722982210

Manufacturer
Woodhead - Molex
VIGOR # :

3017091

Description
CONN HEADER VERT 10POS 3.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1722982210 PDF
Country of origin
-
Date code
-
ads
1722982210 Specifications
Type Description
Series:Ultra-Fit 172298
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.138" (3.50mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.181" (4.60mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.465" (11.80mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:400V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 555
Shipped from
HK warehouse
Expected Shipping Date
Mar 31 - Apr 04 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.9200 $2.92
10 $2.8060 $28.06
100 $2.3386 $233.86
500 $1.9878 $993.91
1000 $1.6955 $1 695.49
5000 $1.5201 $7 600.45

Current price of 1722982210 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
TS-132-G-A-2

TS-132-G-A-2

CONN HEADER VERT 32POS 2.54MM

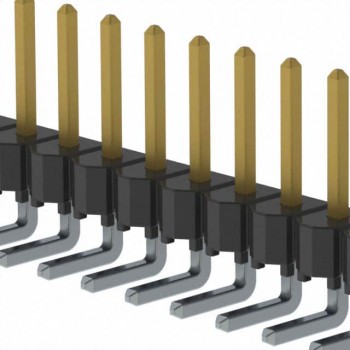

HTSW-122-08-SM-S-RA
