M300-MV10345M1

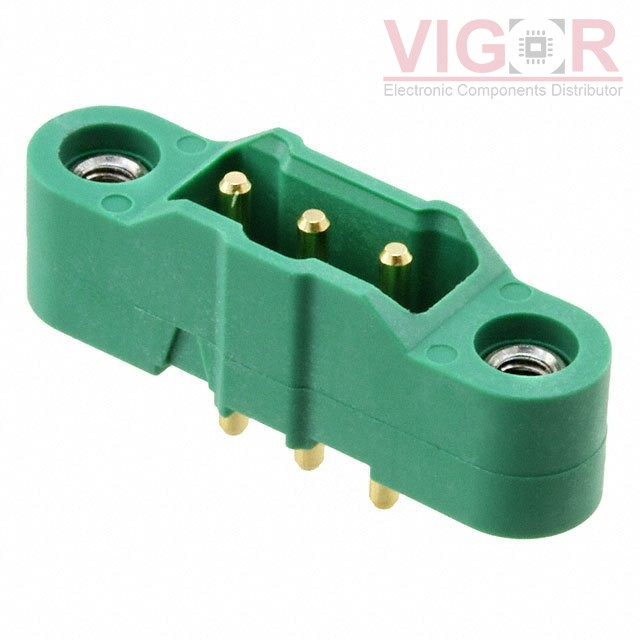

Product image
Product thumb
Part No :

M300-MV10345M1

Manufacturer
Harwin
VIGOR # :

3017746

Description
CONN HEADER VERT 3POS 3MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
M300-MV10345M1 PDF
Country of origin
-
Date code
-
ads
M300-MV10345M1 Specifications
Type Description
Series:M300
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin, Power
Pitch - Mating:0.118" (3.00mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Threaded
Contact Length - Mating:-
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.276" (7.00mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:29.5µin (0.75µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
Features:Mating Flange
Operating Temperature:-65°C ~ 175°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):10A
Voltage Rating:600VAC/DC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1041
Shipped from
HK warehouse
Expected Shipping Date
May 18 - May 22 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $5.2900 $5.29
12 $5.0731 $60.88
108 $4.2278 $456.60
504 $3.5936 $1 811.18
1008 $3.0651 $3 089.65

Current price of M300-MV10345M1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
