DF14-10P-1.25H(26)

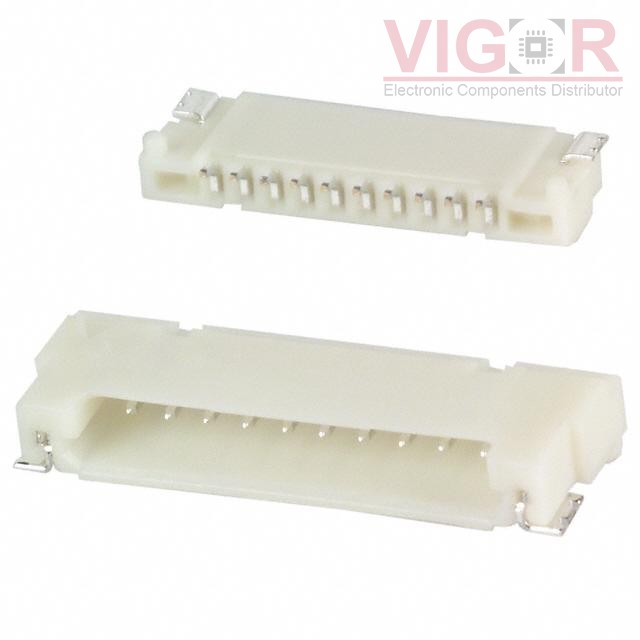

Image is for reference,
please contact us to get the real picture

Part No :: DF14-10P-1.25H(26)

Manufacturer: Hirose

Description: CONN HEADER SMD R/A 10POS 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF14-10P-1.25H(26) PDF

Availability: 0 pieces

Unit Price: ~~$0.79500~~

Current price of DF14-10P-1.25H(26) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF14-10P-1.25H(26) Specifications

Type	Description
Series:	DF14
Package:	Tape & Reel (TR)
Part Status:	Last Time Buy
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.086" (2.20mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.098" (2.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin-Copper
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Board Guide, Solder Retention
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	1A
Voltage Rating:	150V
