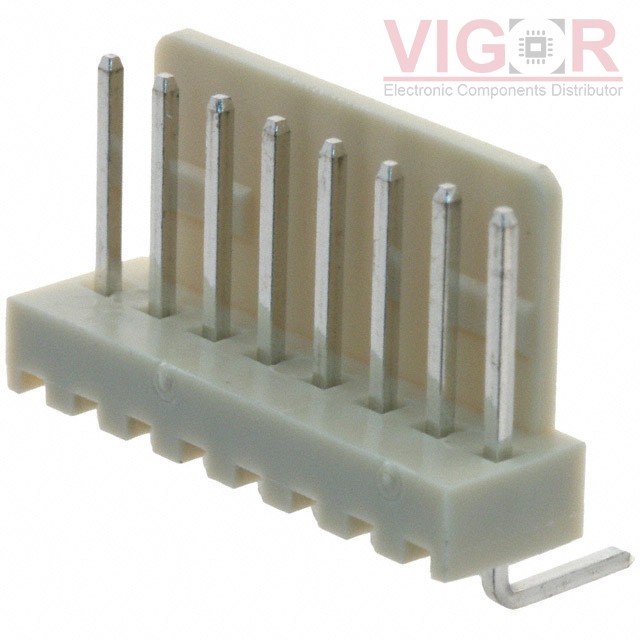

SWR25X-NRTC-S08-RB-BA

Part No :: SWR25X-NRTC-S08-RB-BA

Manufacturer: Sullins Connector Solutions

Description: CONN HEADER R/A 8POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SWR25X-NRTC-S08-RB-BA PDF

Availability: 1515 pieces

Unit Price: ~~$0.43000~~

Current price of SWR25X-NRTC-S08-RB-BA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SWR25X-NRTC-S08-RB-BA Specifications

Type	Description
Series:	SWR25X
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 1 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.303" (7.70mm)
Contact Length - Post:	0.134" (3.40mm)
Overall Contact Length:	-
Insulation Height:	0.228" (5.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	-
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Beige
Current Rating (Amps):	5A per Contact
Voltage Rating:	250V
