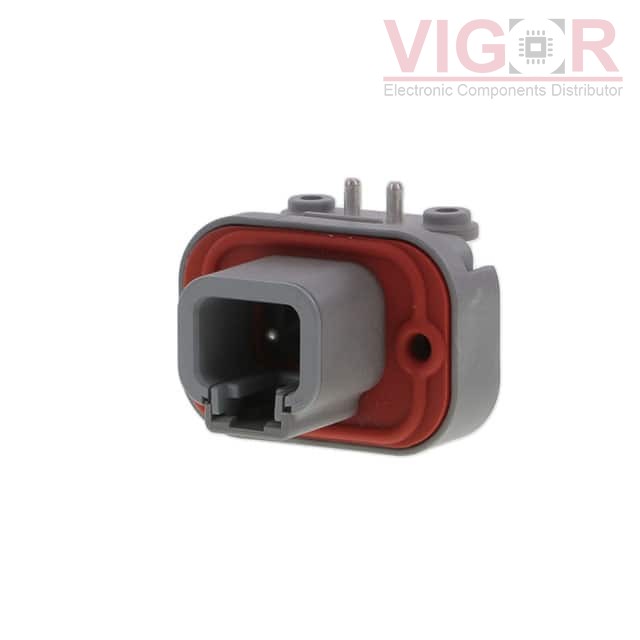

ATP13-2P-BM04GRY

Part No :: ATP13-2P-BM04GRY

Manufacturer: Tuchel / Amphenol

Description: 2 POSITION 90DEG PCB FLANGE MNT

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: ATP13-2P-BM04GRY PDF

Availability: 31 pieces

Current price of ATP13-2P-BM04GRY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ATP13-2P-BM04GRY Specifications

Type	Description
Series:	BoardLock™ ATP
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Male Pin
Pitch - Mating:	0.264" (6.71mm)
Number of Positions:	2
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Panel Mount, Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.146" (3.70mm)
Overall Contact Length:	-
Insulation Height:	1.224" (31.10mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	Board Lock, Mounting Flange, Potting Wall, Sealed
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	IP67
Material Flammability Rating:	-
Insulation Color:	Gray
Current Rating (Amps):	25A
Voltage Rating:	250V

Please confirm the specifications of the products when ordering.
