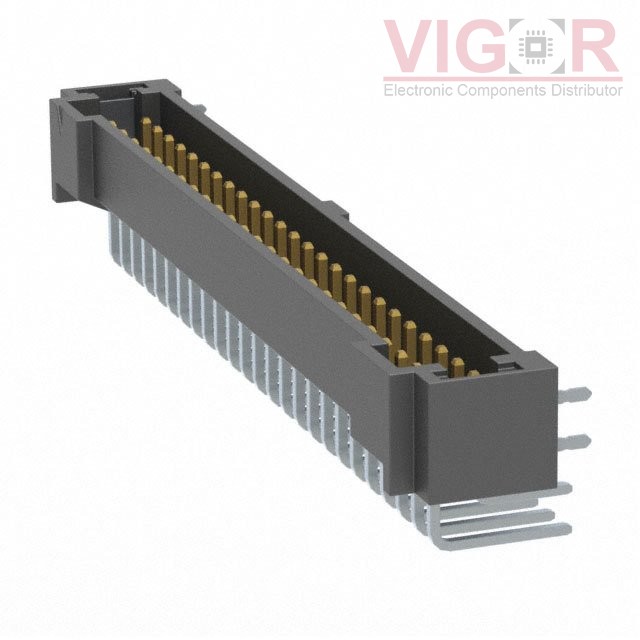

T2M-125-01-L-D-RA-WT

Part No :: T2M-125-01-L-D-RA-WT

Manufacturer: Samtec, Inc.

Description: CONN HEADER R/A 50POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: T2M-125-01-L-D-RA-WT PDF

Availability: 25 pieces

Unit Price: ~~$11.24000~~

Current price of T2M-125-01-L-D-RA-WT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

T2M-125-01-L-D-RA-WT Specifications

Type	Description
Series:	Tiger Eye™ T2M
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	50
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	0.090" (2.29mm)
Overall Contact Length:	-
Insulation Height:	0.293" (7.44mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	3.8A
Voltage Rating:	-
