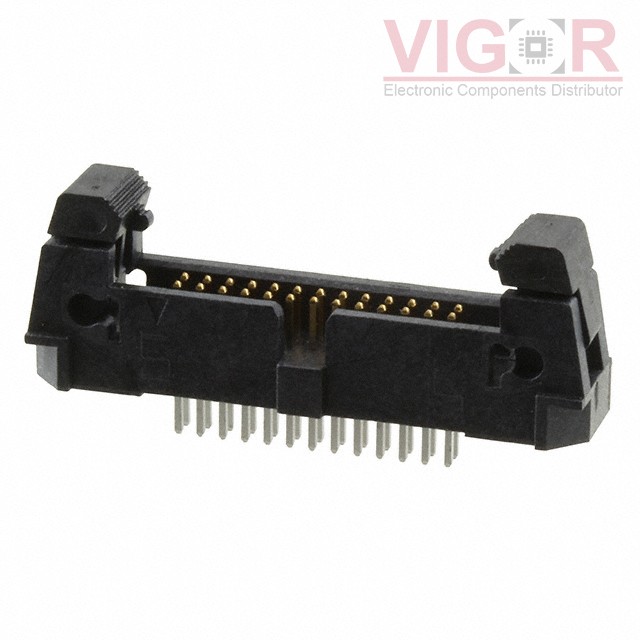

EHF-113-01-SM-D

Part No :: EHF-113-01-SM-D

Manufacturer: Samtec, Inc.

VIGOR # :: 3019156

Description: CONN HEADER VERT 26POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: EHF-113-01-SM-D PDF

Country of origin: -

Date code: -

EHF-113-01-SM-D Specifications

Type	Description
Series:	EHF
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	26
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	0.120" (3.05mm)
Contact Length - Post:	0.107" (2.71mm)
Overall Contact Length:	0.350" (8.89mm)
Insulation Height:	0.325" (8.25mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Keying Slot
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	1.75A
Voltage Rating:	-
