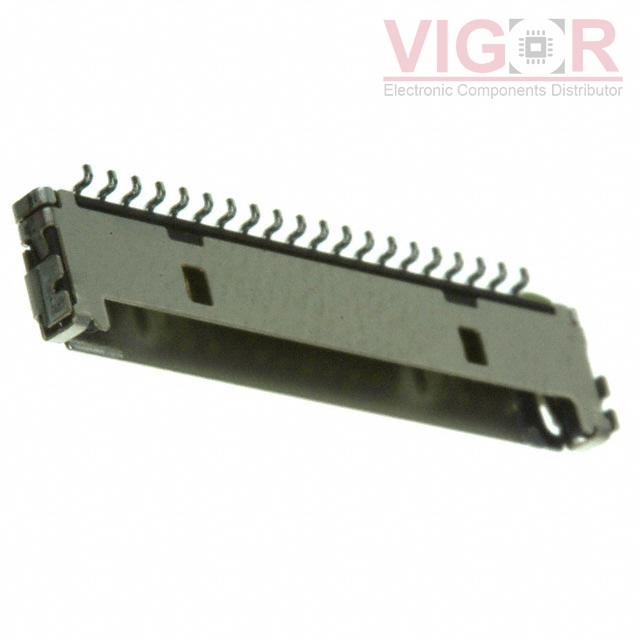

DF19G-20P-1H(55)

Image is for reference,
please contact us to get the real picture

Part No :: DF19G-20P-1H(55)

Manufacturer: Hirose

Description: CONN HEADER SMD R/A 20POS 1MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF19G-20P-1H(55) PDF

Availability: 0 pieces

Unit Price: ~~$1.45000~~

Current price of DF19G-20P-1H(55) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF19G-20P-1H(55) Specifications

Type	Description
Series:	DF19
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Connector Type:	Receptacle
Contact Type:	Male Pin
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	20
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.065" (1.65mm)
Contact Shape:	-
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA), Nylon
Features:	Glow Wire Compliant, Shielded, Solder Retention
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	100V
