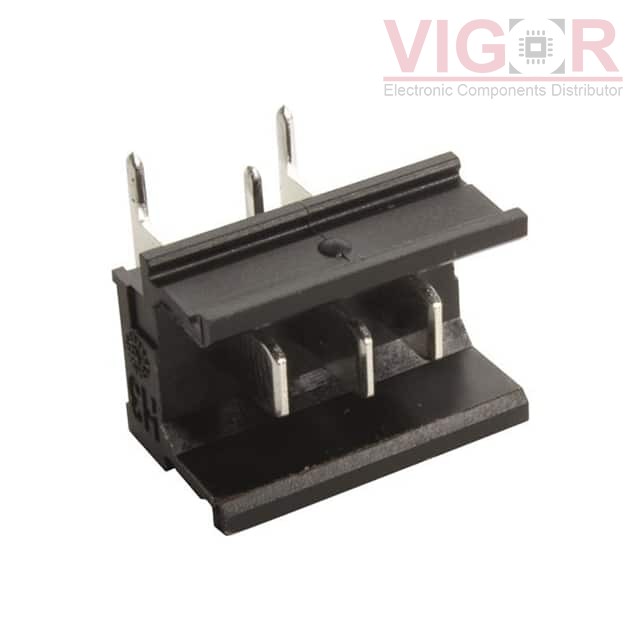

02519031301

Part No :: 02519031301

Manufacturer: HARTING

Description: HAR MODULAR H3 MODULE MALE ANGLE

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 02519031301 PDF

Availability: 0 pieces

Unit Price: ~~$3.80000~~

Current price of 02519031301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

02519031301 Specifications

Type	Description
Series:	har-modular®
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.200" (5.08mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 2 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	0.110" (2.80mm)
Overall Contact Length:	-
Insulation Height:	0.579" (14.70mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Silver
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	15A
Voltage Rating:	-
