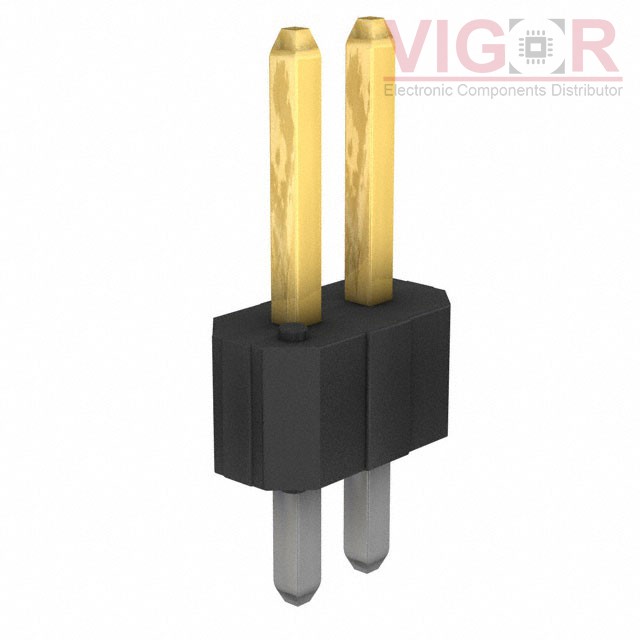

69157-102HLF

Part No :: 69157-102HLF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER VERT 2POS

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 69157-102HLF PDF

Availability: 5848 pieces

Unit Price: ~~$0.38000~~

Current price of 69157-102HLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

69157-102HLF Specifications

Type	Description
Series:	BERGSTIK® II
Package:	Bag
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	-
Number of Positions:	2
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.200" (5.08mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	0.410" (10.41mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold or Gold, GXT™
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	-
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
