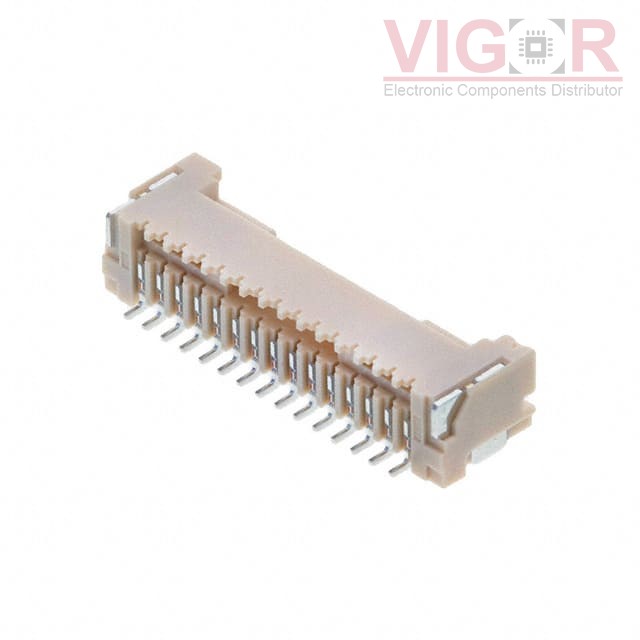

SM15B-ZESS-TB(LF)(SN)

Image is for reference,
please contact us to get the real picture

Part No :: SM15B-ZESS-TB(LF)(SN)

Manufacturer: JST

Description: CONN HEADER SMD R/A 15POS 1.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SM15B-ZESS-TB(LF)(SN) PDF

Availability: 1753 pieces

Unit Price: ~~$1.30000~~

Current price of SM15B-ZESS-TB(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SM15B-ZESS-TB(LF)(SN) Specifications

Type	Description
Series:	ZE
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Outer Shroud Contact
Pitch - Mating:	0.059" (1.50mm)
Number of Positions:	15
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.228" (5.80mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	Solder Retention
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	2A
Voltage Rating:	100V

Please confirm the specifications of the products when ordering.
