640503-1

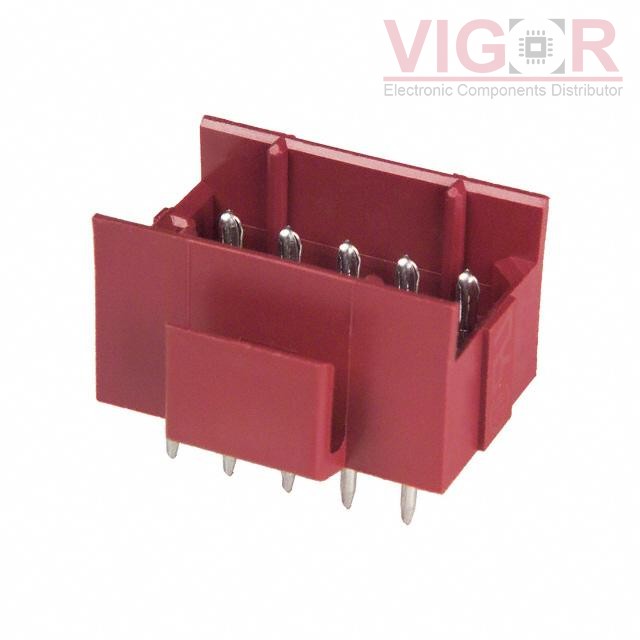

Product image
Product thumb
Part No :

640503-1

Manufacturer
Tyco Electronics
VIGOR # :

3019760

Description
CONN HEADER VERT 15POS 4.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
640503-1 PDF
Country of origin
-
Date code
-
ads
640503-1 Specifications
Type Description
Series:MR (Miniature Rectangular)
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:15
Number of Rows:3
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:0.220" (5.59mm)
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.531" (13.50mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black, Red
Current Rating (Amps):6A
Voltage Rating:250VAC
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 50
Shipped from
HK warehouse
Expected Shipping Date
Jan 12 - Jan 16 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $9.38 $9.38
10 $8.97 $89.74
100 $7.55 $754.65
500 $6.32 $3 161.38
1000 $5.59 $5 588.52

Current price of 640503-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

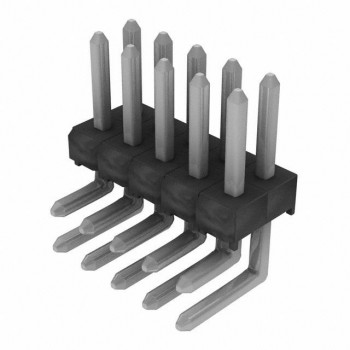

TSW-105-08-T-D-RA

TSW-105-08-T-D-RA

CONN HEADER R/A 10POS 2.54MM

TSW-101-23-G-D

TSW-101-23-G-D

CONN HEADER VERT 2POS

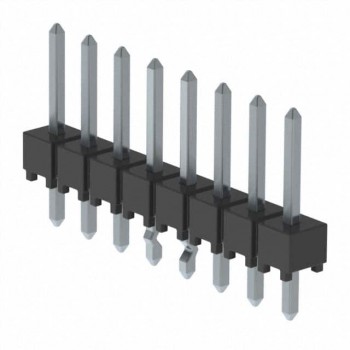

HTSW-108-07-T-S-LL
