9-1318124-2

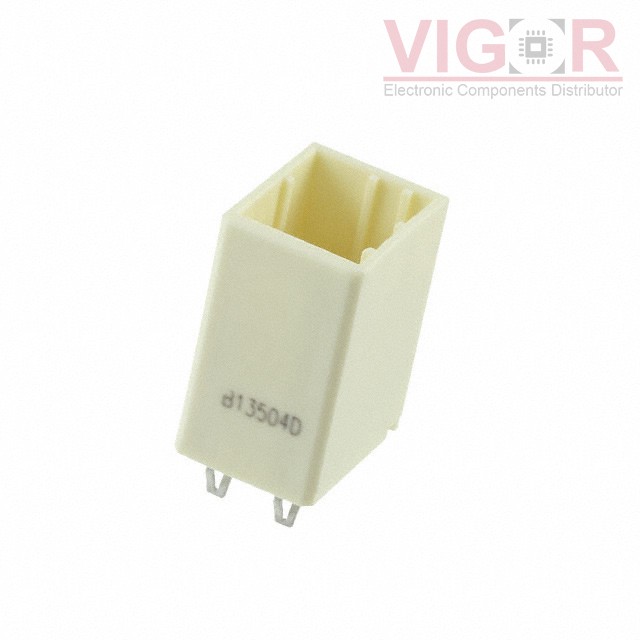

Image is for reference,
please contact us to get the real picture

Part No :: 9-1318124-2

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 6POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 9-1318124-2 PDF

Availability: 0 pieces

Unit Price: ~~$1.64561~~

Current price of 9-1318124-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

9-1318124-2 Specifications

Type	Description
Series:	Dynamic D-2100
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Tab
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	6
Number of Rows:	2
Row Spacing - Mating:	0.148" (3.75mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.134" (3.40mm)
Overall Contact Length:	-
Insulation Height:	0.700" (17.78mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Polyester, Glass Filled
Features:	Board Lock
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	5A
Voltage Rating:	250V

Please confirm the specifications of the products when ordering.
