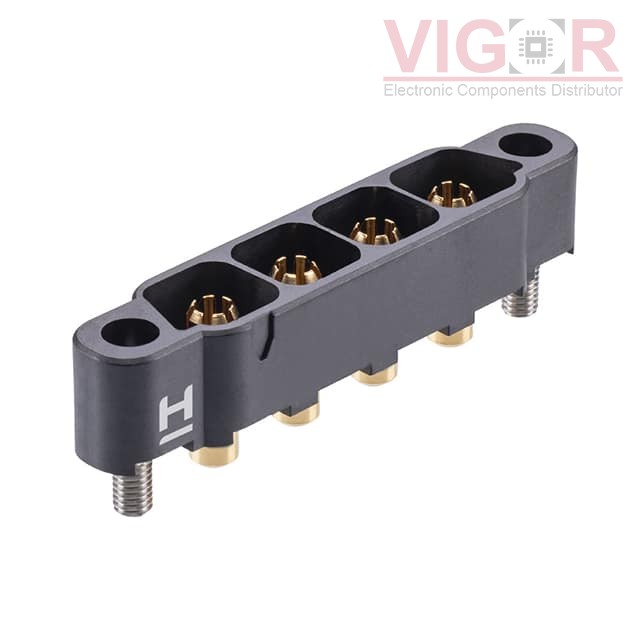

KA1-MV10405M1

Part No :: KA1-MV10405M1

Manufacturer: Harwin

Description: CONN HDR 8.5MM VERT PCB 4POS

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: KA1-MV10405M1 PDF

Availability: 50 pieces

Unit Price: ~~$44.71000~~

Current price of KA1-MV10405M1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

KA1-MV10405M1 Specifications

Type	Description
Series:	KONA
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin, Power
Pitch - Mating:	0.335" (8.50mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Threaded
Contact Length - Mating:	-
Contact Length - Post:	0.177" (4.50mm)
Overall Contact Length:	-
Insulation Height:	0.374" (9.50mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Gold
Contact Material:	Beryllium Copper
Insulation Material:	Polyphenylene Sulfide (PPS)
Features:	Mating Flange, Mounting Flange
Operating Temperature:	-65°C ~ 150°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	60A per Contact
Voltage Rating:	-
