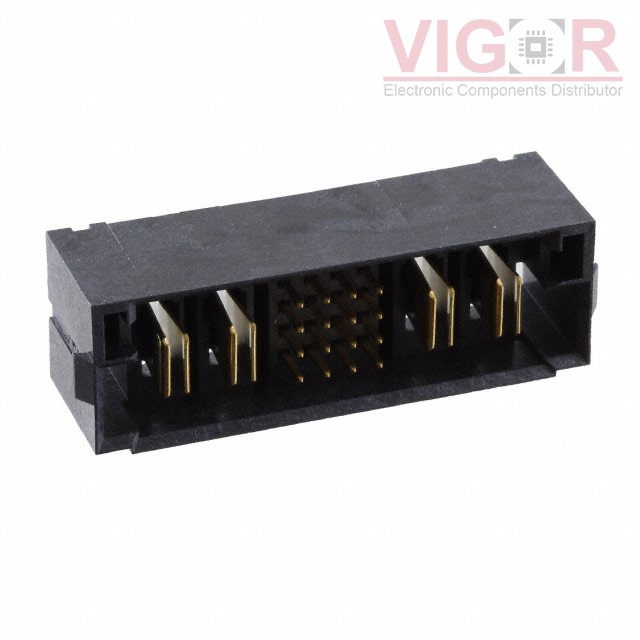

MPTC-02-16-02-6.30-01-L-V-LC

Part No :: MPTC-02-16-02-6.30-01-L-V-LC

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 20POS

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: MPTC-02-16-02-6.30-01-L-V-LC PDF

Availability: 63 pieces

Unit Price: ~~$6.19000~~

Current price of MPTC-02-16-02-6.30-01-L-V-LC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MPTC-02-16-02-6.30-01-L-V-LC Specifications

Type	Description
Series:	PowerStrip™ 30 MPTC
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Blade; Male Pin
Pitch - Mating:	-
Number of Positions:	20 (16 + 4 Power)
Number of Rows:	4
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.107" (2.71mm)
Overall Contact Length:	-
Insulation Height:	0.448" (11.38mm)
Contact Shape:	Rectangular, Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy, Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Lock
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
