XJ8C-1011

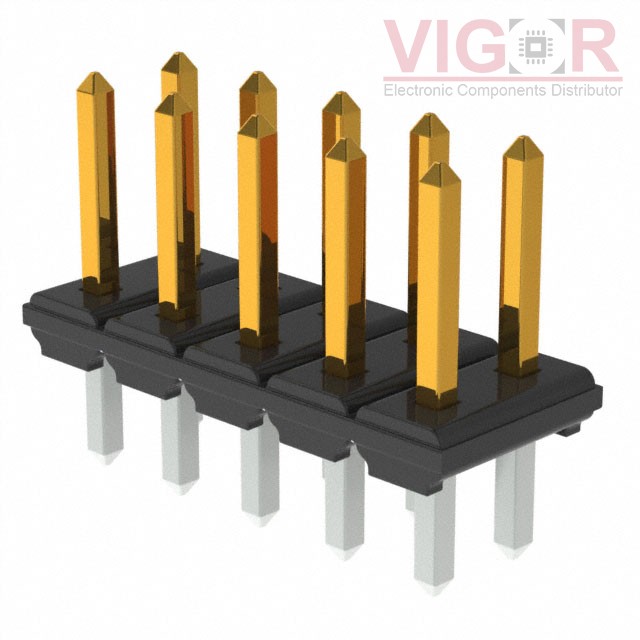

Image is for reference,
please contact us to get the real picture

Part No :: XJ8C-1011

Manufacturer: Omron Electronics Components

Description: CONN HEADER VERT 10POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: XJ8C-1011 PDF

Availability: 128 pieces

Unit Price: ~~$1.96000~~

Current price of XJ8C-1011 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XJ8C-1011 Specifications

Type	Description
Series:	XJ8
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.169" (4.30mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	0.339" (8.60mm)
Insulation Height:	0.059" (1.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	5.90µin (0.150µm)
Contact Finish - Post:	-
Contact Material:	Brass, Nickel
Insulation Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2A
Voltage Rating:	300V
