0908160012

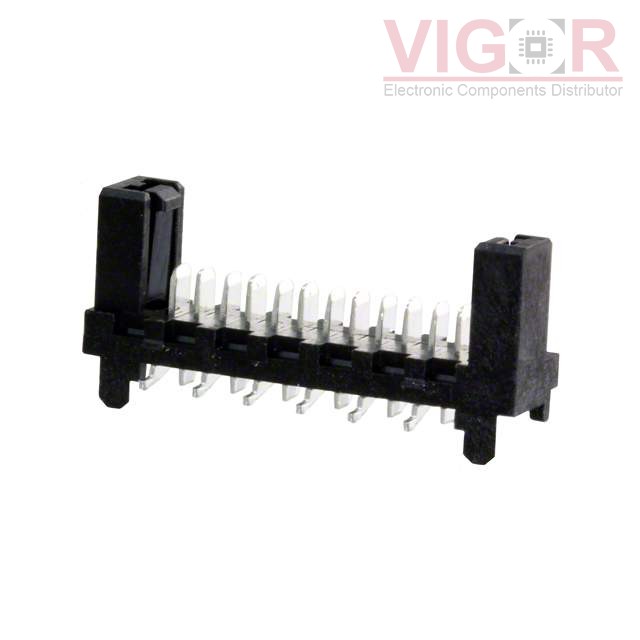

Product image
Product thumb
Part No :

0908160012

Manufacturer
Woodhead - Molex
VIGOR # :

3021158

Description
CONN HEADER SMD 12POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0908160012 PDF
Country of origin
-
Date code
-
ads
0908160012 Specifications
Type Description
Series:Picoflex 90816
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.050" (1.27mm)
Number of Positions:12
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 2 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:0.083" (2.10mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.333" (8.45mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:118.1µin (3.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyphthalamide (PPA), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 HB
Insulation Color:Black
Current Rating (Amps):1.2A
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 557
Shipped from
HK warehouse
Expected Shipping Date
Jan 21 - Jan 25 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.52 $1.52
10 $1.38 $13.84
25 $1.30 $32.47
50 $1.24 $62.12
100 $1.19 $118.59
250 $1.07 $268.23
500 $0.99 $494.11
2496 $0.79 $1 973.29
4992 $0.75 $3 749.24

Current price of 0908160012 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
