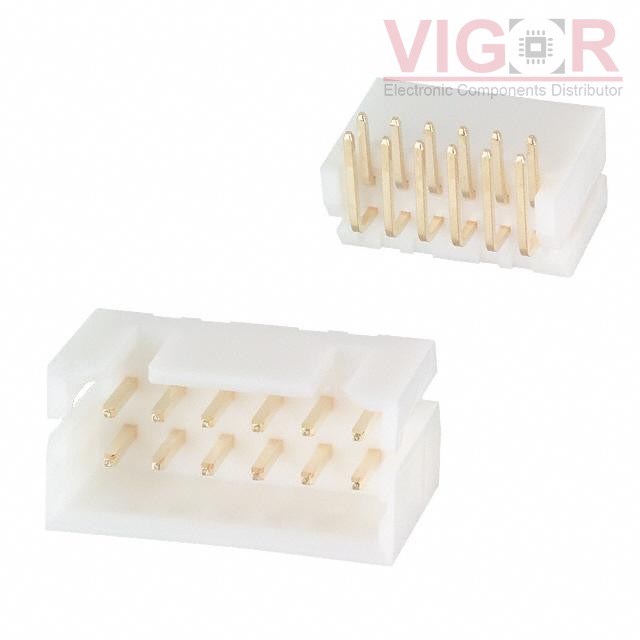

DF1B-12DP-2.5DS(01)

Image is for reference,
please contact us to get the real picture

Part No :: DF1B-12DP-2.5DS(01)

Manufacturer: Hirose

Description: CONN HEADER R/A 12POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF1B-12DP-2.5DS(01) PDF

Availability: 90 pieces

Unit Price: ~~$1.35000~~

Current price of DF1B-12DP-2.5DS(01) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF1B-12DP-2.5DS(01) Specifications

Type	Description
Series:	DF1B
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	0.098" (2.50mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.177" (4.50mm)
Contact Length - Post:	0.130" (3.30mm)
Overall Contact Length:	-
Insulation Height:	0.339" (8.61mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	Keying Slot
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	White
Current Rating (Amps):	-
Voltage Rating:	250V
