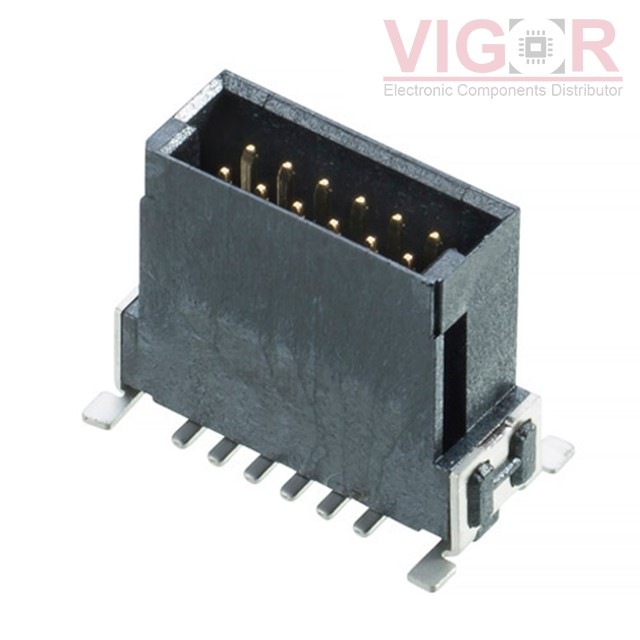

| Type | Description |
|---|---|
| Series: | Archer Kontrol |
| Package: | Tape & Reel (TR)Cut Tape (CT) |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.050" (1.27mm) |
| Number of Positions: | 12 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.050" (1.27mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board |
| Shrouding: | Shrouded - 4 Wall |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Latch Lock |
| Contact Length - Mating: | 0.157" (4.00mm) |
| Contact Length - Post: | - |
| Overall Contact Length: | - |
| Insulation Height: | 0.388" (9.86mm) |
| Contact Shape: | Rectangular |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 1.00µin (0.025µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Features: | Board Guide, Pick and Place, Solder Retention |
| Operating Temperature: | -55°C ~ 125°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 1.2A |
| Voltage Rating: | - |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 300 | ||
| 600 | ||
| 900 | ||
| 1500 | ||
| 3000 | ||
| 7500 | ||
| 15000 |
Current price of M55-7021242R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
