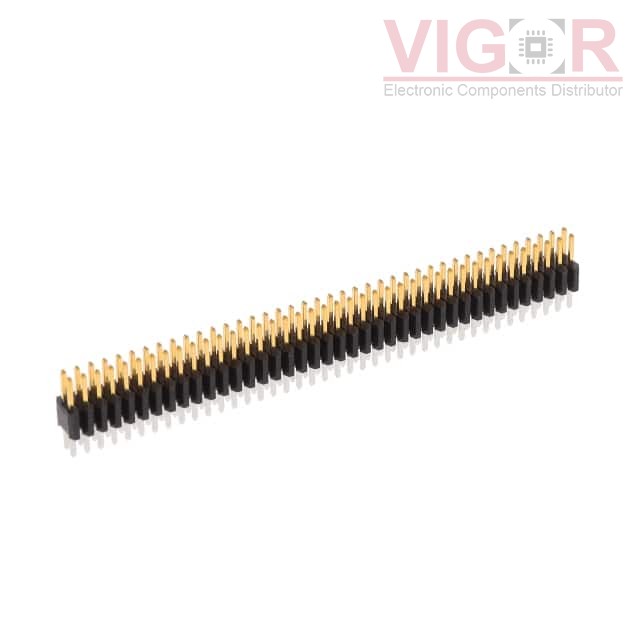

20021111-00080T8LF

Part No :: 20021111-00080T8LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER VERT 80POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 20021111-00080T8LF PDF

Availability: 565 pieces

Current price of 20021111-00080T8LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

20021111-00080T8LF Specifications

Type	Description
Series:	Minitek127® 1.27mm
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	80
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.120" (3.05mm)
Contact Length - Post:	0.091" (2.30mm)
Overall Contact Length:	0.309" (7.86mm)
Insulation Height:	0.098" (2.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold, GXT™
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
