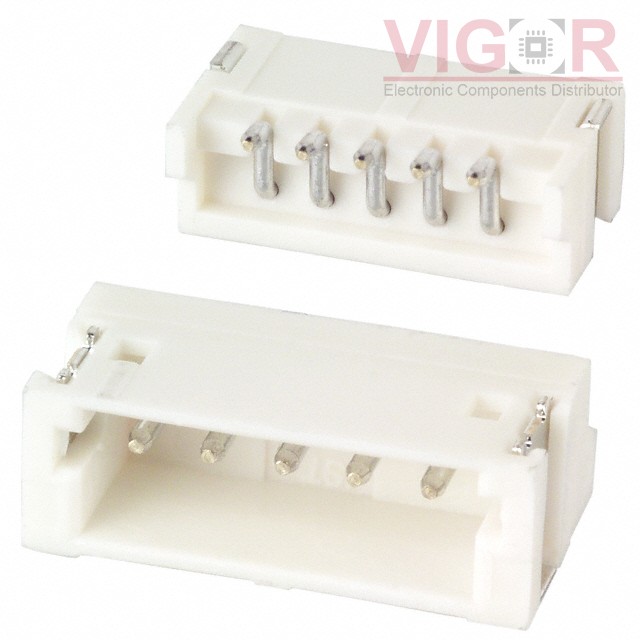

S5B-ZR-SM4A-TF(LF)(SN)

Part No :: S5B-ZR-SM4A-TF(LF)(SN)

Manufacturer: JST

Description: CONN HEADER SMD R/A 5POS 1.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: S5B-ZR-SM4A-TF(LF)(SN) PDF

Availability: 8007 pieces

Unit Price: ~~$0.70000~~

Current price of S5B-ZR-SM4A-TF(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

S5B-ZR-SM4A-TF(LF)(SN) Specifications

Type	Description
Series:	ZH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.059" (1.50mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.146" (3.70mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA6T), Nylon 6T
Features:	Solder Retention
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	1A
Voltage Rating:	50V
