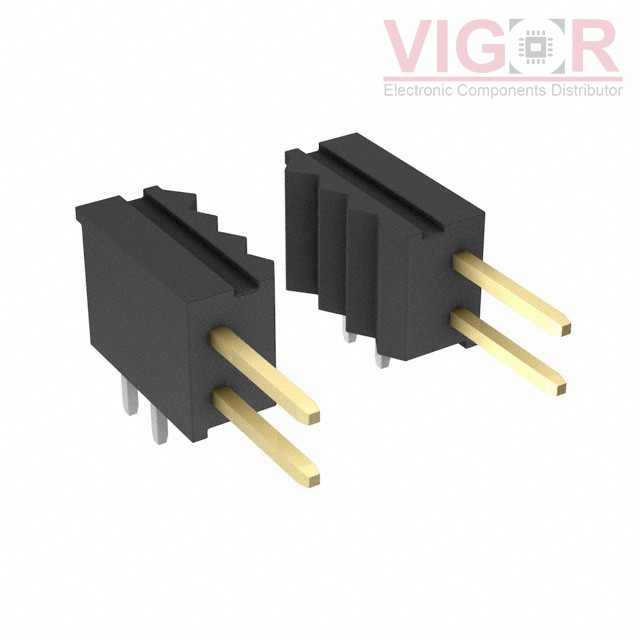

A1-16PA-2.54DS(74)

Part No :: A1-16PA-2.54DS(74)

Manufacturer: Hirose

Description: CONN HEADER R/A 16POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: A1-16PA-2.54DS(74) PDF

Availability: 0 pieces

Unit Price: ~~$2.58000~~

Current price of A1-16PA-2.54DS(74) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

A1-16PA-2.54DS(74) Specifications

Type	Description
Series:	A1
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	16
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.236" (6.00mm)
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	-
Insulation Height:	0.236" (6.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	19.7µin (0.50µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	200V

Please confirm the specifications of the products when ordering.
