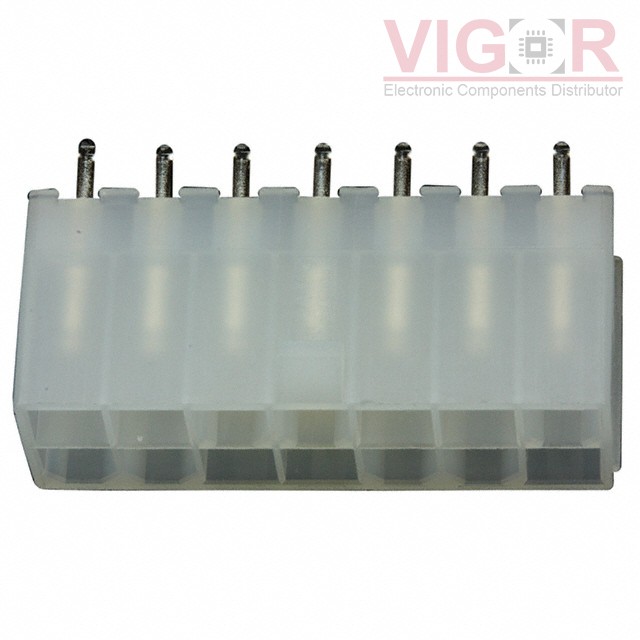

1-1586037-4

Part No :: 1-1586037-4

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 14POS 4.2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1-1586037-4 PDF

Availability: 2091 pieces

Unit Price: ~~$1.18000~~

Current price of 1-1586037-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-1586037-4 Specifications

Type	Description
Series:	VAL-U-LOK
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.165" (4.20mm)
Number of Positions:	14
Number of Rows:	2
Row Spacing - Mating:	0.165" (4.20mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	-
Insulation Height:	0.504" (12.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	80.0µin (2.03µm)
Contact Finish - Post:	Tin
Contact Material:	Brass Alloy
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Natural
Current Rating (Amps):	9A
Voltage Rating:	600VAC
