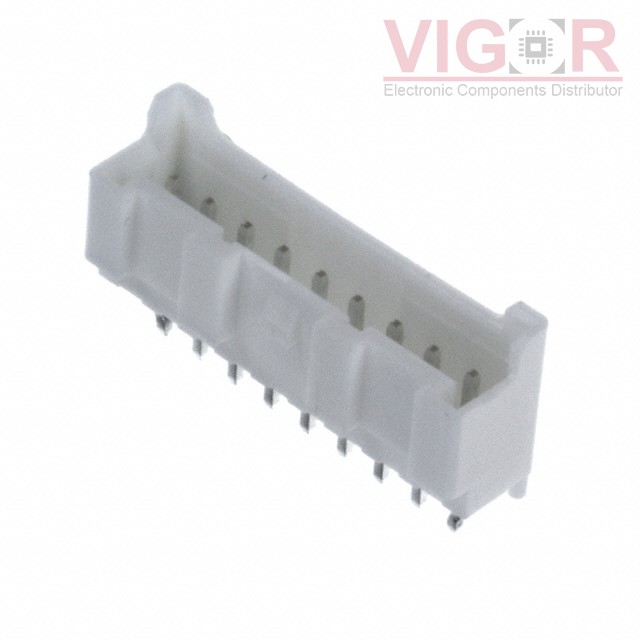

B09B-PASK-1(LF)(SN)

Part No :: B09B-PASK-1(LF)(SN)

Manufacturer: JST

Description: CONN HEADER VERT 9POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: B09B-PASK-1(LF)(SN) PDF

Availability: 60 pieces

Current price of B09B-PASK-1(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B09B-PASK-1(LF)(SN) Specifications

Type	Description
Series:	PA
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	9
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	0.126" (3.20mm)
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	0.319" (8.10mm)
Insulation Height:	0.303" (7.70mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Board Guide
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	3A
Voltage Rating:	250V

Please confirm the specifications of the products when ordering.
