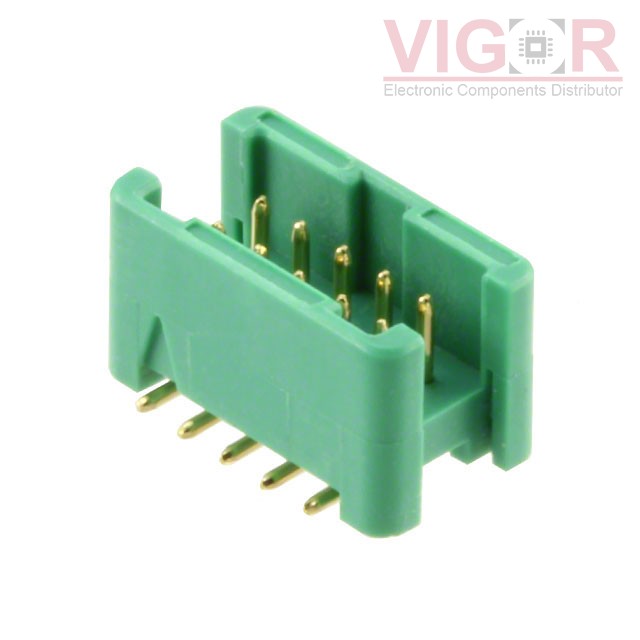

G125-MS11005L0P

Part No :: G125-MS11005L0P

Manufacturer: Harwin

Description: CONN HEADER SMD 10POS 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: G125-MS11005L0P PDF

Availability: 776 pieces

Current price of G125-MS11005L0P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

G125-MS11005L0P Specifications

Type	Description
Series:	Gecko
Package:	Strip
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.049" (1.25mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.193" (4.90mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features:	Pick and Place, Solder Retention
Operating Temperature:	-65°C ~ 150°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Green
Current Rating (Amps):	2A per Contact
Voltage Rating:	-
