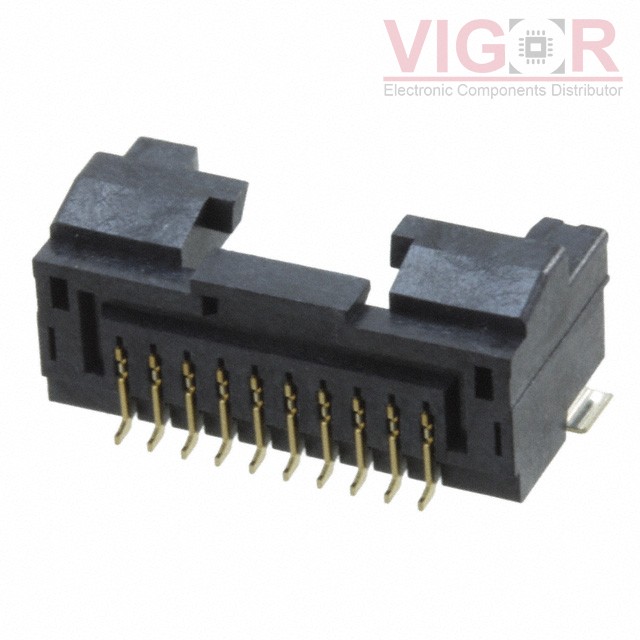

DF50A-10P-1H(51)

Part No :: DF50A-10P-1H(51)

Manufacturer: Hirose

Description: CONN HEADER SMD R/A 10POS 1MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF50A-10P-1H(51) PDF

Availability: 2016 pieces

Unit Price: ~~$1.22000~~

Current price of DF50A-10P-1H(51) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF50A-10P-1H(51) Specifications

Type	Description
Series:	DF50
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.239" (6.07mm)
Contact Shape:	-
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	2.00µin (0.051µm)
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Polyester
Features:	Solder Retention
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A
Voltage Rating:	100V
