281696-3

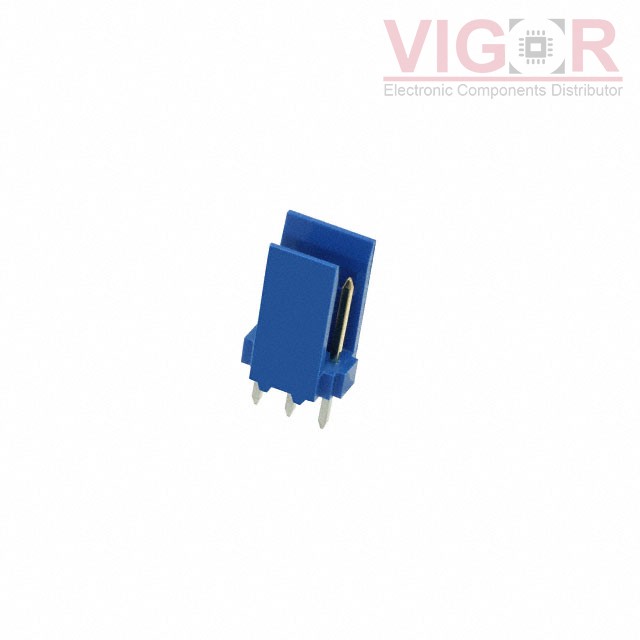

Product image
Product thumb
Part No :

281696-3

Manufacturer
VIGOR # :

3024880

Description
CONN HEADER VERT 3POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
281696-3 PDF
Country of origin
-
Date code
-
ads
281696-3 Specifications
Type Description
Series:HE13/HE14
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:3
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 2 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.276" (7.00mm)
Contact Length - Post:0.114" (2.90mm)
Overall Contact Length:0.492" (12.50mm)
Insulation Height:0.449" (11.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:16.0µin (0.41µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-40°C ~ 100°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1736
Shipped from
HK warehouse
Expected Shipping Date
May 20 - May 24 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.7900 $0.79
10 $0.7366 $7.37
100 $0.5650 $56.50
500 $0.4913 $245.64
1000 $0.4053 $405.32
5000 $0.3562 $1 780.95
10000 $0.3316 $3 316.30

Current price of 281696-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

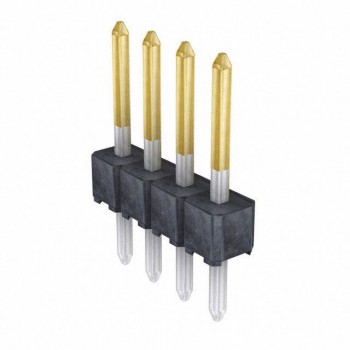

0901200924
