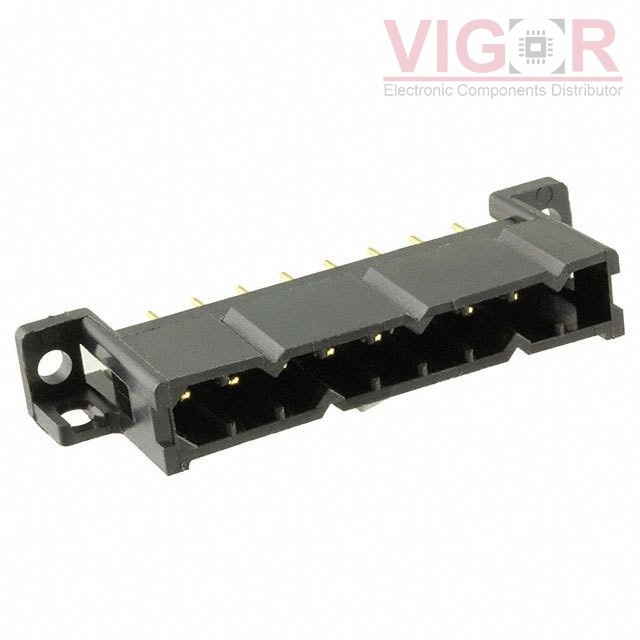

SMS9PHGE4

Part No :: SMS9PHGE4

Manufacturer: Souriau-Sunbank by Eaton

Description: CONN HEADER VERT 9POS 5.08MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SMS9PHGE4 PDF

Availability: 92 pieces

Current price of SMS9PHGE4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SMS9PHGE4 Specifications

Type	Description
Series:	SMS
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.200" (5.08mm)
Number of Positions:	9
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	0.165" (4.19mm)
Overall Contact Length:	-
Insulation Height:	0.370" (9.40mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	16.0µin (0.41µm)
Contact Finish - Post:	-
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Glass Filled
Features:	Mounting Flange
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	7.5A
Voltage Rating:	-
